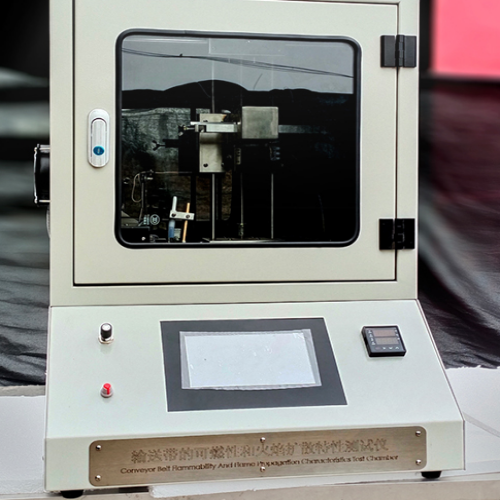

Conveyor belt flammability and flame spread characteristics tester

The conveyor belt flammability and flame spread characteristics tester is suitable for testing the flammability and flame propagation characteristics of textile-reinforced conveyor belts, steel cord conveyor belts, and horizontally oriented conveyor belt samples.

Application

Conveyor belt flammability and flame spread characteristics testers are widely used in quality control in various industries, including construction, transportation, petroleum, and chemical engineering. These instruments are used to evaluate the conveyor belt's reaction to ignition sources, measure the duration of afterglow after the flame extinguishes, and assess the flammability and flame propagation characteristics of the conveyor belt. These tests are crucial for ensuring the safety and reliability of conveyor belts in various environments.

Standard

AS 1334.10 1994: Methods of testing conveyor and elevator belting - Determination of ignitability and flame propagation characteristics of conveyor belting

ISO 340-2022: Conveyor belts — Laboratory scale flammability characteristics — Requirements and test method

Feature

Accurate Testing: This testing instrument can accurately test the flammability and flame propagation characteristics of conveyor belts, ensuring the reliability of the test results.

Standardized Testing: This testing instrument complies with the ISO 340-2022 standard, ensuring standardized and consistent testing methods.

Versatility: This testing instrument is suitable for various types of conveyor belts, including textile conveyor belts, steel cord conveyor belts, and horizontally oriented conveyor belts.

Fast Response: This testing instrument has a strong after-sales service team that can promptly handle various issues, relieving customers of any worries.

Complete Spare Parts: This testing instrument has a complete range of spare parts, eliminating the hassle of long lead times for ordering replacement parts.

Parameters

Accessoriess

Combustion test chamber

Gas supply system (including propane gas and flow control device)

Blowtorch (or burner)

Temperature verification device

Timer (for combustion time and flame propagation time)

Sample holder/fixture, etc.

Test Procedures

The operating procedure for a conveyor belt flammability and flame spread characteristics tester (such as a flame retardant performance tester for underground coal mine conveyor belts) is briefly summarized as follows:

Sample Preparation: Cut test specimens according to the standard (e.g., MT 113-1995), usually requiring 6 specimens for testing.

Equipment Check: Ensure that core equipment such as the combustion test chamber, blowtorch (alcohol blowtorch or alcohol lamp), and stopwatch are in good working order, and check that the gas supply system (e.g., propane or methane) is properly connected.

Parameter Setting: Set the flame spread length, burning time, and other judgment parameters according to the test standard (e.g., alcohol blowtorch test or alcohol lamp test). For example, in the alcohol blowtorch test, the arithmetic mean of the flaming combustion time of the 6 specimens shall not exceed 3s, and the single value shall not exceed 10s; the flame spread length shall not be greater than 280mm.

Place the test specimen vertically or horizontally in the combustion test chamber.

Ignite the blowtorch or alcohol lamp and conduct the combustion test on the specimen.

Use a stopwatch to record the flaming combustion time and non-flaming combustion time of the specimen.

Measure and record the flame spread length of the specimen (i.e., the length of the carbonized part of the specimen).

Data Analysis:

Calculate the arithmetic mean of the flaming combustion time and non-flaming combustion time of the 6 specimens.

Compare the test results with the standard requirements to determine whether the specimen is qualified.

If there are unqualified samples in the first test, retesting with double the number of specimens is required. If it is still unqualified, the test is considered a failure.
