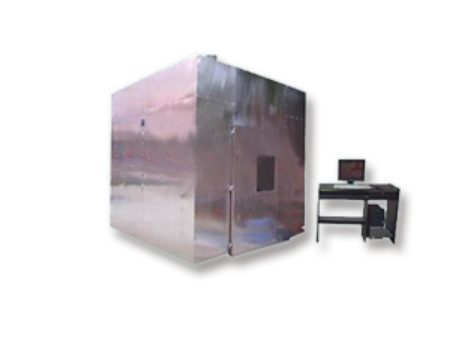

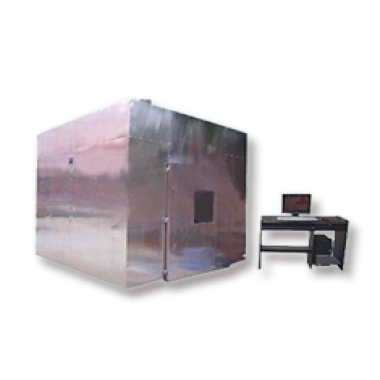

Cable and fiber optic cable line integrity combustion testing machine

With continuous advancements in technology, cables and fiber optic cables play a vital role in modern society, providing critical infrastructure for communication, energy transmission, and other applications. However, under extreme conditions, such as during a fire, the integrity of these cable lines becomes a crucial safety factor.

Application

This device is used for testing cables and optical fibers that are required to maintain circuit integrity when subjected to a flame with a temperature of at least 750°C (with controlled heat output) during a separate fire test.

Standard

GB/T19216.21-2003：Tests for electric cables under fire conditions - Circuit integrity - Part 21: Procedures and requirements - Cables of rated voltage up to and including 0.6/1.0 kV

IEC60331-21：Tests for electric cables under fire conditions - Circuit integrity - Part 21: Procedures and requirements - Cables of rated voltage up to and including 0.6/1.0 kV

GB/T19216.23-2003：Tests for electric cables under fire conditions - Circuit integrity - Part 23: Procedures and requirements - Electric data cables

IEC60331-23：Tests for electric cables under fire conditions - Circuit integrity - Part 23: Procedures and requirements - Electric data cables

GB/T19216.25-2003：Tests for electric cables under fire conditions - Circuit integrity - Part 25: Procedures and requirements - Optical fibre cables

IEC60331-25：Tests for electric cables under fire conditions - Circuit integrity - Part 25: Procedures and requirements - Optical fibre cables

Feature

Modular Design: The equipment features a modular combustion chamber design, equipped with a Venturi mixing burner and a gas fuel system. Flame temperature is precisely controlled via dual flow meters.

Multiple Test Modes: The equipment supports fire resistance performance verification of AC 1000V/3A lines and can simulate complex environments such as vibration and water spray.

Real-time Monitoring: The equipment provides quantitative data for cable fire resistance performance evaluation by real-time monitoring of the current on/off status of the cables.

Standard Compliance: The equipment complies with GB/T19216 and IEC60331 series standards, ensuring the scientific accuracy and reliability of the tests.

High-Efficiency Combustion Device: The equipment utilizes a ribbon-type propane burner with staggered nozzle arrangement and a sophisticated design to meet the testing needs of samples with different wire diameters.

Parameters:

Accessoriess

One main unit;

One set each of GB/T19216.11 and GB/T19216.12 testing devices;

Safety measures configuration including high-pressure and gas supply systems;

One set of verification device with a heat source.

Test Procedures

Equipment Startup:  Start the cable combustion testing machine correctly according to the equipment's operating manual, ensuring all parameters are set correctly and performing any necessary preheating.

Sample Installation: Install the prepared cable sample onto the sample holder of the testing machine.

Test Parameter Setting: Set the test parameters according to the test requirements, including burning time, burning temperature, oxygen concentration, etc.

Test Operation: Start the test and record the test parameters, the burning behavior of the sample, and other relevant data.

Data Analysis: Analyze the data based on the test results to evaluate the cable's combustion performance.
