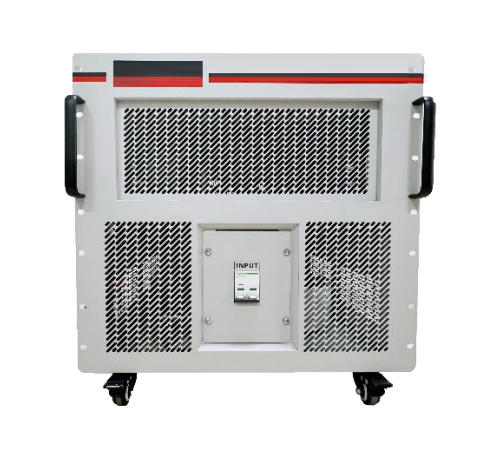

Programmable power controller
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
Programmable power supply G-PPC01, It features continuous zero-crossing and fully variable positive/negative output, without the need to manually switch polarity. By utilizing four-quadrant operation, it can function both as a power source and as a load, making it suitable for testing capacitive and inductive loads.
The series also supports arbitrary waveform editing: based on sine, square, and triangle waves, it includes 22 built-in waveform elements. Users can edit, save, and recall arbitrary waveforms, setting amplitude, frequency, initial phase, sweep, and square wave duty cycle. Sequential control allows programming from 1 to 200 steps with the 22 waveform types.
Automotive electronics power performance testing
Compatible with 12V / 24V / 48V vehicle systems
Suitable for both capacitive and inductive loads testing
ISO 16750-2 / GB/T 28046.2
Great Wall GWT A D01-01:2020-09
WM Q/WM J073013A-2019
Great Wall BMW GS 95003-2 / GS 95024-2-1 / GS 95026
Chery QV 65013 (2010-06)
Chrysler CS-11979 / PF-9326
Cummins 14269 (982022-026)
Daimler Chrysler DC-10615 / DC-10842
Fiat 9.90110
GMW 3172
Hyundai/Kia ES 95400-10 Rev. D / ES 39110-00
Iveco 16-2103 Rev.15 (2010)
LV 124 (2013) / LV 148
MBN 10615 / MBN LV 124-1
Nissan 28401
Volkswagen VW 80000
PSA B21 7110 / Renault 36.00.808/--L
Linear amplifier design for low ripple, low noise, and high-speed response
True bi-polar four-quadrant operation for positive/negative voltage and current
Arbitrary waveform editing and sequencing control
High-speed CV mode with ultra-wide frequency range (DC ~ 100 kHz / 200 kHz / 300 kHz)
Supports 6× peak current for strong load-driving capability
Compatible with specialized software for international and OEM standards
Wide voltage span: -80V ~ +80V, realizing true bi-polar operation
Remote control via PC interface or integrated 7600 master control system
| Specification | VEP-7640S (Single-Polarity) | VEP-7640D (Bi-Polarity) |
|---|---|---|
| Output Voltage Range | 0 ~ 40 V / 0 ~ 60 V / 0 ~ 80 V | -40 ~ +40 V / -60 ~ +60 V / -80 ~ +80 V |
| Output Current Range | 10 A / 30 A / 50 A / 100 A / 200 A | 10 A / 30 A / 50 A / 100 A / 200 A |
| Output Frequency Range | DC ~ 100 kHz / 200 kHz / 300 kHz | DC ~ 100 kHz / 200 kHz / 300 kHz |
| Ripple | ≤1/1000 of full output voltage | ≤1/1000 of full output voltage |
| Voltage Response Time | <10 µs | <10 µs |
| Test Type | Example Standards / Items |
|---|---|
| DC Supply Voltage | ISO 16750-2 / GB 28046.2, VW 80000, GM 3172 |
| Long-term Overvoltage | E-01 |
| Voltage Step / Transient | 8.2.1, E-02, E-04 |
| Reverse Voltage | 8.2.2, E-03, 4.7, E-15 |
| Long-term Overvoltage | 4.3, E-02 |
| AC Superimposed Voltage | 4.4, E-04 |
| Gradual Voltage Change (Slow Drop/Rise) | 4.5, 4.7, E-07 / E-08 |
| Instantaneous Voltage Drop | 4.6.1, E-03 |
| Voltage Reset | 4.6.2, E-09 |
| Start Characteristics | 4.6.3, E-11 |
| Load Change Test | 4.6.4, E-05 |
| Reference Ground / Supply Offset | 4.8, E-16 |
| Pulse / Connector / Line Interrupts (Optional) | E-06, E-12, E-13, E-14, 9.2.9~9.2.19 |
