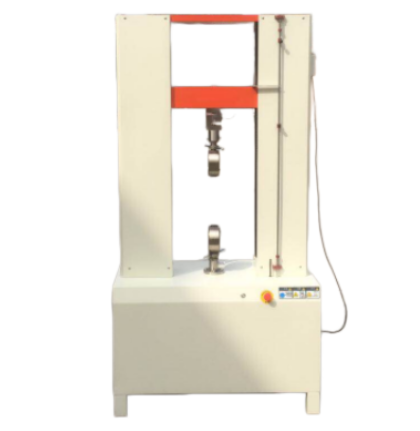

Universal testing machine (UTM)

Applications

The T-200 UTM is suitable for a wide range of industries including aerospace, petrochemical, mechanical manufacturing, metals, wire and cable, rubber and plastics, paper and packaging, adhesives, textiles, food, pharmaceuticals, and more. It can test raw materials, semi-finished, and finished products for various mechanical properties. With interchangeable fixtures, the machine can perform:

Tensile and compressive tests

Bending/flexural tests

Tear, peel, and adhesion tests

Shear and holding tests

Standards

ISO 178 — Determination of flexural properties of plastics

GB, ASTM, BS, DIN, JIS — Supports multiple national and international standards for tensile, compression, bending, and other mechanical tests.

Key Features

Robust construction: Aluminum alloy columns with high-quality sprayed base for stability.

Precision drive system: High-accuracy, zero-backlash ball screw and timing belt ensure precise movement.

Computer control: Full PC-based data acquisition and motion control.

Software: Windows-based software allows standard tests and custom test method creation.

High accuracy: Force measurement accuracy better than 0.5 % grade with 1/300,000 force resolution.

Safety Features

Travel limit protection: Programmable and mechanical dual protection ensures safe operation within set travel limits.

Overload protection: Automatic shutdown when force exceeds 110 % of the sensor capacity.

Automatic diagnostics: Periodic checks on measurement and drive systems for overvoltage, overcurrent, and overheating; stops immediately if faults occur.

Standard Accessories

One set of tensile or compression fixtures (customized per sample)

USB and power cables

Certificate of conformity, warranty card, and instruction manual

Technical Specifications
