DescriptionThe TE 108 is a twelve-station pin on reciprocating plate machine. The rig comprises
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

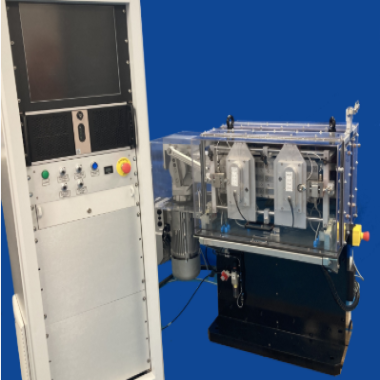

The STD-TE 108 is a twelve-station pin on reciprocating plate machine. The rig comprises a massive “tombstone” base with a gear-motor mounted on one end face. Crank wheels and connecting rods on either side of the gearbox drive reciprocating slides, carrying multiple plate specimens, mounted on either side of the base.
| Contact Configurations: | Area Contact |
| Ball on Flat | |
| Area Contact Specimen: | Ø10 mm with hemispherical seat (Ø18 mm maximum) |
| Minimum Load: | 30 N |
| Maximum Load per Specimen: | 133 N @ 8 bar apllied pressure |
| Maximum (total) Friction Force: | 500 N |
| Maximum Stroke: | 200 mm |
| Maximum Frequency: | 4 Hz |
| Load Control: | Servo Valve x 2 |
| Load Feedback: | Pressure Transducer x 2 |
| Friction Force: | Strain Gauge Transducer x 4 |
| Wear Measurement: | Linear Potentiometer x 12 |
| Plate Specimen Temperature: | Pyrometer x 4 |
| Motor: | 7.5kW a.c. Servo Motor and Drive |
| Interface: | USB Serial Link Interface Module |
| Software: | COMPEND 2000 |
COMPEND Controlled Parameters | |
| Frequency | |
| Test Duration | |
| Load (Slide 1) | |
| Load (Slide 2) | |
Manually Set Parameters | |
| Reciprocating Stroke Length | |
Measured Parameters | |
| Frequency | |
| Test Duration | |
| Load x 2 | |
| Friction x 4 | |
| Wear Displacement x 12 | |
| Specimen Plate Temperature x 4 | |
Services | |
| Electricity: | 380/415V, three phase 50/60 Hz, 13 kW |
