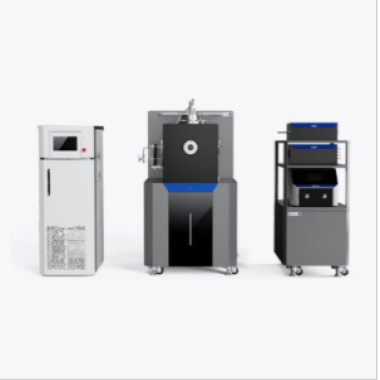

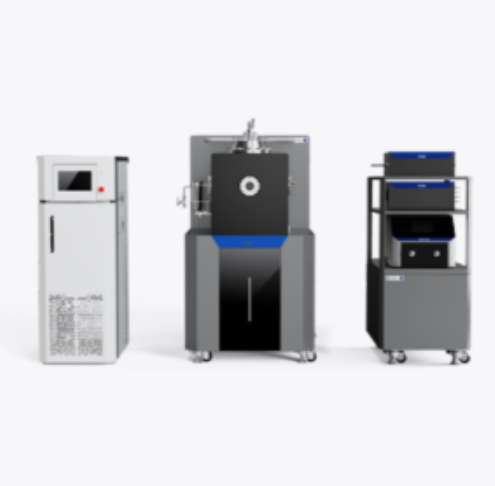

Multiphase High - temperature and High - pressure Explosion Limit Tester

The Multiphase High-Temperature and High-Pressure Explosion Limit Tester is an instrument developed based on standards such as EN 1839, ASTM E918, ASTM E2079, EN 15967, and UL9540A to test combustion and explosion characteristics. This instrument can test combustion and explosion characteristics such as explosion limits, limiting oxygen concentration, explosion pressure, and pressure rise rate.

Applications

1. Petrochemical Industry: Explosion risk assessment of fuels, solvents, and multiphase chemical raw materials

2. New Energy Storage: Thermal runaway/explosion risk detection of battery-related multiphase materials (compliant with UL 9540A standard)

3. Chemical Industry: Safety characteristic (explosion/flammability limits) testing of various multiphase chemicals

4. Materials Science: Flammability/explosion limits determination of multiphase materials under high temperature and high pressure environments

Standards

EN 13938-2: Respiratory Protective Equipment for Firefighters - Part 2: Positive Pressure Respirators (PPR) for Firefighting and Rescue Services

STANAG 4490: NATO Standardization Agreement 4490 - Jet Fuels - Requirements and Test Methods

MIL-STD-1751AMethods 1031, 1032 & 1033: Military Standard 1751A - Test Methods for Electrical and Electronic Equipment Used in Aircraft- Method 1031: Vibration Test- Method 1032: Shock Test- Method 1033: Temperature Cycle Test

EN 13763-13: Explosives for Civil Uses - Part 13: Thermal Stability Test - Accelerating Rate Calorimetry (ARC)

Features

1. Designed with a modular concept to flexibly meet various testing requirements.

2. Allows for free editing of the experimental process to cater to different testing needs.

3. The testing container is made of 316L stainless - steel, which is corrosion - resistant.

4. It adopts a jacket temperature - control method, featuring high temperature - control efficiency.

5. The constant - temperature conditions can be flexibly set, balancing efficiency and accuracy.

6. Equipped with a high - efficiency vacuum pump, and the cleaning parameters can be set to fully eliminate residual effects.

7. With a precision measurement and control system and a compensation gas - mixing algorithm, it enables precise control of gas concentration.

8. It has a stirring function to ensure the uniformity of the mixed gas.

9. It uses a pressure sensor specially designed for explosions, which can work at high temperatures and has good dynamic performance.

10. Automatic control of gas samples, including automatic vacuum - pumping, automatic gas - mixing, and automatic stirring. 11. The equipment has a safety interlock function to enhance safety.

12. Multiple safety protections such as safety valves and burst discs effectively ensure the safety of experimenters.

Technical Parameters

Accessoriess

1. Modular functional components (adaptable to different testing needs)

2. 316L stainless steel corrosion-resistant test container

3. Jacketed temperature control component

4. High-efficiency vacuum pump

5. Gas mixing device

6. Explosion-proof high-temperature pressure sensor

7. Precision gas mixing system (including compensation mixing algorithm)

8. Automatic gas sample control component (automatic vacuuming and mixing module)

9. Safety interlock functional components

10. Safety protection accessories (safety valve, rupture disc)

Test Procedures

1. Operating Environment: (-5～45)℃, <95%RH

2. Test Container Temperature Control Range: Room temperature～200℃

3. Maximum Configuration Gas Pressure: Supports 1 atmosphere, ±0.1%FS

4. Test Container Design Pressure: ≥2.0MPa

5. Explosion Pressure Sensor: ≥5.0MPa, linearity ±1.0%FS

6. Explosion Pressure Acquisition System Sampling Frequency: ≥5kHz

7. Explosion Pressure Acquisition System Single Experiment Data: ≥10000 times

8. Gas Input Channels: 3 channels

9. Maximum Stirrer Speed: 400rpm, adjustable speed
