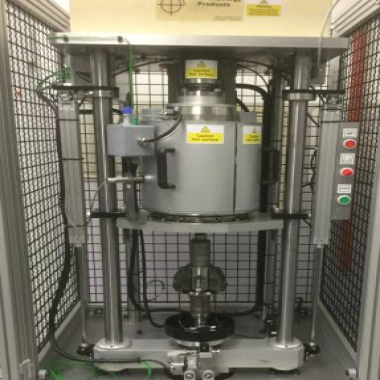

The STD-TE 47 Three Station Ring/Liner Tribometer allows three idealised piston ring samples to be run against an unmodified cylinder liner. The key difference between this device and more conventional reciprocating tribometers is that instead of running up and down the liner, the samples are run around the internal circumference of the liner in either continuous rotation, allowing high sliding speeds to be achieved, or oscillating motion.
A complete (unmodified) cylinder liner sample is attached by means of an expanding collet to the test spindle. The lower end of the liner sample is supported by a steady bearing carried on a secondary cross-head. A spline shaft assembly, which mounts on the main cross-head, carries a ring sample carousel. The carousel is free to slide axially on, while its rotation is resisted by, the spline.
| Base Machine | ||
| Rotational Speed: | 2 to 2.000 rpm | |
| Motor: | 4 kW ac @ 1500 rpm | |
| 50% overload available for 30 seconds | ||
| Loading System: | Pneumatic bellows | |
| Load Force: | Strain gauge transducer x 1 | |
| Friction Torque: | Strain gauge transducer x 1 | |
| Maximum liner temperature: | 250°C | |
| Temperature Sensors: | Optical pyrometer x 1 | |
| k-type thermocouple x 3 | ||
| Interface: | Serial Link Interface Module | |
| HSD High Speed Data Acquisition Card | ||
| Software: | COMPEND 2000 | |
| Small Liner Example | ||
| Typical Ring Sample: | ||
| Contact width: | 10 mm | |
| Specimen thickness: | 3 mm | |
| Contact crown radius: | 25 mm | |
| Typical Cylinder Liner: | ||
| Internal diameter: | 83 mm | |
| External diameter: | 90 mm | |
| Length: | 130 mm | |
| Maximum Sample Load: | 500 N | |
| Maximum Rotational Speed: | 2.000 rpm | |
| Oscillating Motion: | +/-10 degrees at 25 Hz | |
| +/-15 degrees at 20 Hz | ||
| +/-20 degrees at 18 Hz | ||
| +/-25 degrees at 15 Hz | ||
| +/-35 degrees at 10 Hz | ||
| +/-45 degrees at 8 Hz | ||
| Large Liner Example | ||
| Typical Ring Sample: | ||
| Contact width: | 20 mm | |
| Specimen thickness: | 4 mm | |
| Contact crown radius: | 50 mm | |
| Typical Cylinder Liner: | ||
| Internal diameter: | 170 mm | |
| External diameter: | 193 mm | |
| Length: | 370 mm | |
| Maximum Sample Load: | 750 N | |
| Maximum Rotational Speed: | 1.500 rpm | |
| Oscillating Motion: | +/-10 degrees at 5 Hz | |
| +/-15 degrees at 4 Hz | ||
| +/-20 degrees at 3 Hz | ||
| +/-25 degrees at 2 Hz | ||
| Controlled Parameters | Rotational Speed | |
| Temperature | ||
| Load | ||
| Test Duration | ||
| Recorded Parameters | Rotational Speed | |
| Friction Torque | ||
| Temperatures | ||
| Number of Revolutions | ||
| Test Duration | ||
| Sliding Speed | ||
| Friction Coefficient | ||
| Sliding Distance | ||
| Services | ||
| Electricity: | 380/415 V, three phase, 50/60 Hz, with neutral and earth, 7.5 kW | |
| Clean, dry air: | 4 cfm at 8 bar (120 psi) | |
| Installation | ||
| Floor-standing machine: | 900 mm x 600 mm deep x 2000 mm high, 250 kg | |
| Floor-standing cabinet: | 600 mm x 600 mm x 1800 mm high, 150 kg | |
| Packing Specifications: | 2.2 m3, GW 550 kg, NW 400 kg | |
