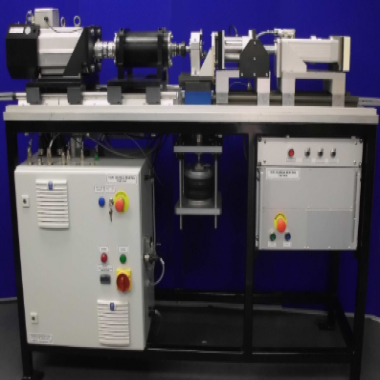

The rig is constructed with similar geometry to a conventional lathe, comprising a “head-stock”, for carrying shaft samples, a “tail-stock”, mounting a combined axial force and radial torque transducer, and a “tool-post”, for mounting a specimen and applying a radial force.
The head-stock and tail-stock assemblies are mounted on standard linear slide, on bearing blocks, with manual clamps.
| Maximum Radial Load: | 5 kN |
| Bearing/Shaft Diameter: | 5 to 30 mm |
| Spindle Taper: | DIN 69871A, taper ISO 50 |
| Rotary Motion: | |
| Speed: | 0 to 2000 rpm |
| Continuous Torque: | 56.4 Nm |
| Peak Torque: | 136 Nm |
| Oscillating Motion: | |
| Amplitude: | Variable 0 to +/-20° |
| Frequency: | 0.001 to 1 Hz |
| Axial Motion: | |
| Maximum Thrust: | 5 kN |
| Stroke: | 0 to 30 mm |
| Frequency: | 0.001 to 1 Hz |
| Air Bearing: | |
| Input Pressure | 0.41 MPa |
| Ideal Load at 5um Fly Height | 6672 N |
| Stiffness | 1009 N/μm |
| Flow | 4.96 NLPM |
| Fly Height | 5 microns |
| Porous Media Material | Carbon |
| Viable Pressure Range | 0.414 – 0.552 MPa |
| Maximum Allowable Pressure Supply | 0.689 MPa |
| Common Guide Surfaces | Hard-coated aluminium |
| Guide Surface Finish | 16 RMS |
| Controlled Parameters | Frequency (rotational, oscillatory, reciprocating) |
| Amplitude (oscillatory, reciprocating) | |
| Test Duration | |
| Load | |
| Measured Parameters | Frequency |
| Amplitude | |
| Load | |
| Friction Torque | |
| Axial Friction Force | |
| RMS Friction | |
| Contact Potential | |
| Services | |
| Electricity: | 380/415V, three phase plus neutral, 50/60 Hz, 20 kW |
| Air: | 4 cfm at 8 bar (120 psi) |
