Features and Benefits1. One piece of ingress protection test equipment integrates different fun
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

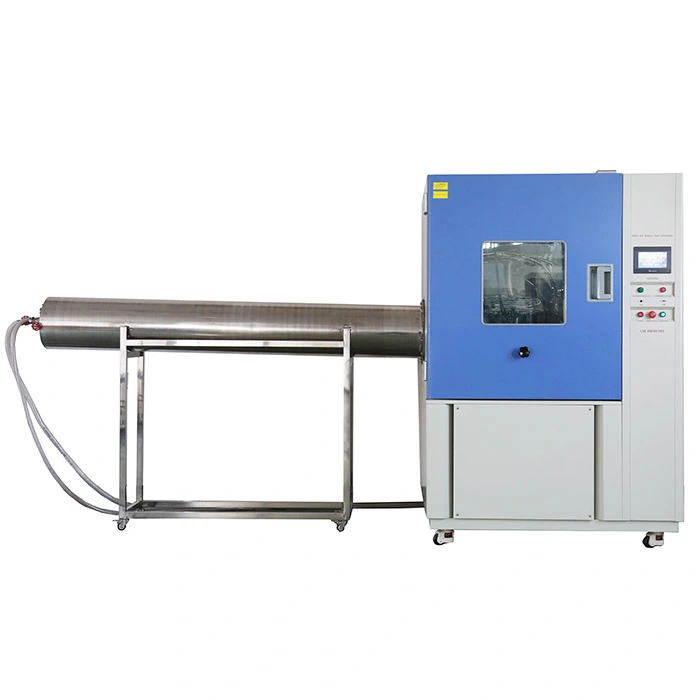

1. One piece of ingress protection test equipment integrates different functions such as dripping, drenching, and water jet, which can simulate a variety of different rainfall scenarios.
2. The PLC controller controls the automatic water intake, and there is a water drain in the working room, and a series of pipes are provided to form an automatic water filtration and circulation system.
3. Intelligent touch screen controller (multiple language selection), can be multi-programming, free combination of waterproof level test, automatic programming test, data can be saved and downloaded.
4. The closed water ingress protection test equipment is equipped with rubber sealing strip to prevent test water from spilling and protect the test environment.
Model | RD-800C | RD-1200C |
Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
Overall Dimensions (mm) | 1180*1420*1920 (excluding stainless steel tube) | 1540*1820*2200 (excluding stainless steel tube) |
Useful Volume (L) | 810 | 2400 |
Drip Tray Size | 600*600 | 1000*1000 |
Oscillating Tube Radius | 400mm | 600mm |
Water Jetting Tube | ||
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
oscillating angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Jet nozzles | IPX5: Dia6.3mm, IPX6: Dia12.5mm | |
Jet distance | 2.5~3meter | |
Turntable Rotation Speed | 1r/min (Adjustable speed) | |
Controller | Programmable color LCD touch screen controller, Ethernet connection, USB port | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Observation Window | Double layer insulating glass with wiper | |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
