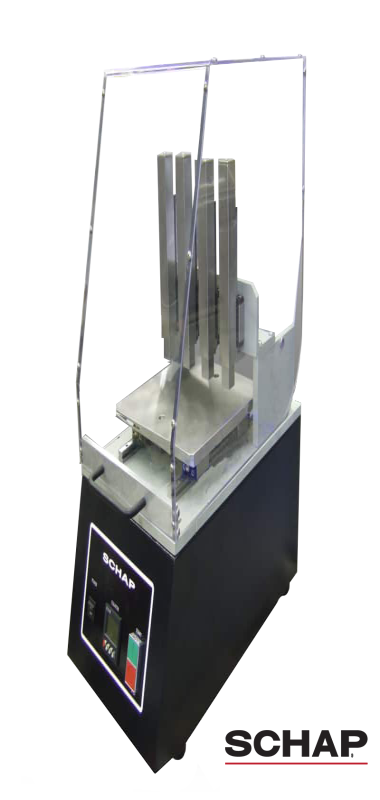

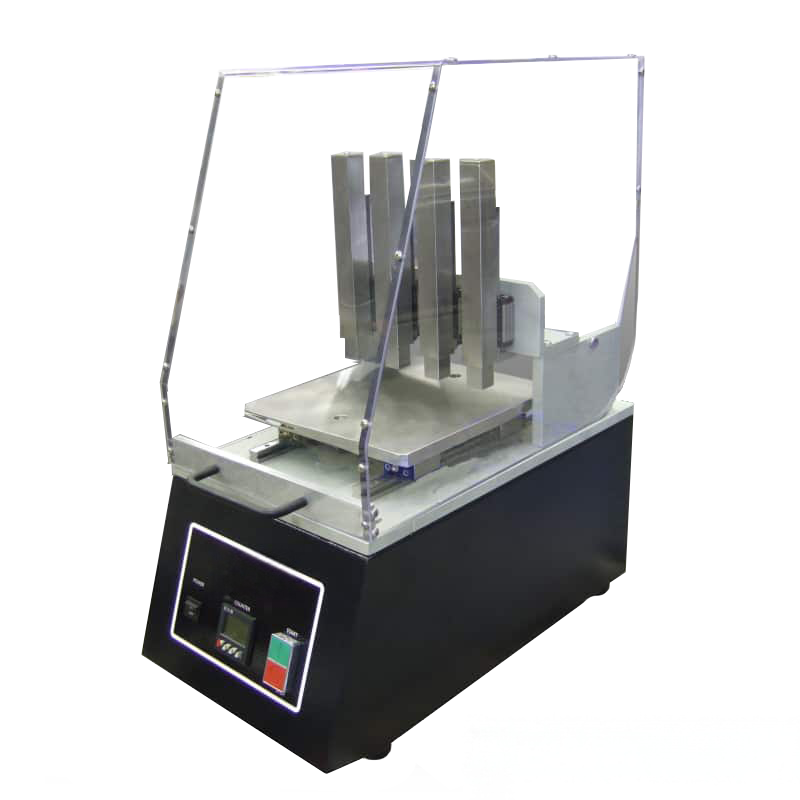

Nissan 4-Station Abrasion Tester for Multi-Material Durability Tester
StandardASTM D3884 (Standard Guide for Abrasion Resistance of Textile Fabrics)ISO 5470-1 (Rubber- or
Email: info@standard-groups.com
Content
Standard
- ASTM D3884 (Standard Guide for Abrasion Resistance of Textile Fabrics)
- ISO 5470-1 (Rubber- or Plastics-Coated Fabrics - Abrasion Resistance)
- TABER® Abrasion Test Methods (Adapted for multi-station parallel testing)
Product Advantages
- 4x Efficiency Boost
- Independent 4-station design reduces testing time by 75% compared to single-unit machines.
- Universal Material Compatibility
- Tests fabrics, leather, coated materials, rubber, and plastics with adjustable pressure (0.5–5 N).
- Precision Abrasion Control
- Variable speed (20–200 RPM) and stroke length (10–50 mm) replicate light to heavy abrasion.
- User-Centric Automation
- 10.1-inch touchscreen interface with multilingual support (English, Spanish, German, Chinese) and programmable test cycles.
- Cost-Effective Design
- Modular abrasive heads (sold separately) allow quick swaps between felt, sandpaper, and steel wool.
Product Features
- Testing Modes:
- Rotary Abrasion: Circular motion for flat surfaces (e.g., leather, vinyl).
- Reciprocating Abrasion: Linear motion for seams, edges, and textured materials.
- Real-Time Monitoring:
- High-resolution cameras capture wear patterns every 50 cycles, with AI-powered fuzz/pill detection.
- Data Management:
- Cloud-compatible software stores 50,000+ test results and generates ISO/ASTM/TABER®-compliant reports.
- Safety & Compliance:
- Overload protection, emergency stop, and CE/UL certification for laboratory safety.
Technical Parameters
| Parameter | Specification |
|---|
| Number of Stations | 4 (independent control) |
| Pressure Range | 0.5–5 N (±0.01 N accuracy) |
| Speed Range | 20–200 RPM (±1 RPM accuracy) |
| Stroke Length | 10–50 mm (±0.1 mm resolution) |
| Dimensions (L×W×H) | 1,200×800×1,500 mm |
| Weight | 280 kg |
| Operating Environment | 15–35°C, ≤85% RH (non-condensing) |
| Power Supply | 220V/110V AC, 50/60Hz, 2.5kW |
Accessories Included
- Abrasive Heads: 4× standard felt discs (dry/wet compatible).
- Calibration Kit: Pressure gauge, speedometer, and NIST-traceable certification.
- Sample Clamps: 8× quick-release holders for flat/curved materials.
- User Manual: Multilingual guide (English, Spanish, German, Chinese) with maintenance tips.
- Dust Collection System: HEPA-filtered vacuum for clean operation.
Ideal For:
- Textile manufacturers (apparel, upholstery, automotive interiors)
- Leather goods producers (shoes, bags, furniture)
- Plastic/rubber component suppliers (automotive, electronics)
- Third-party labs (ISO/ASTM/TABER® certification)
