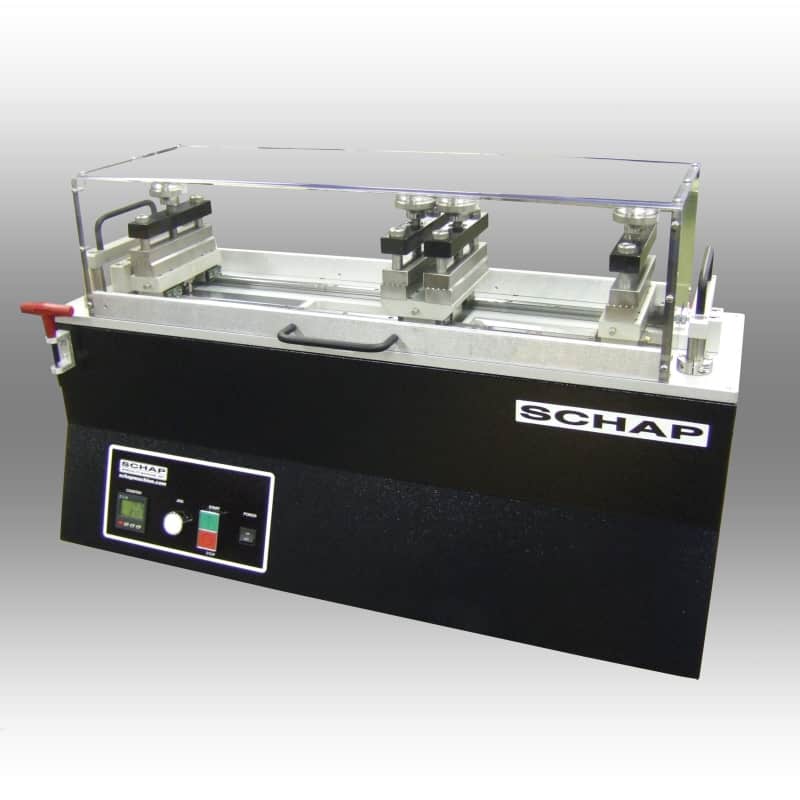

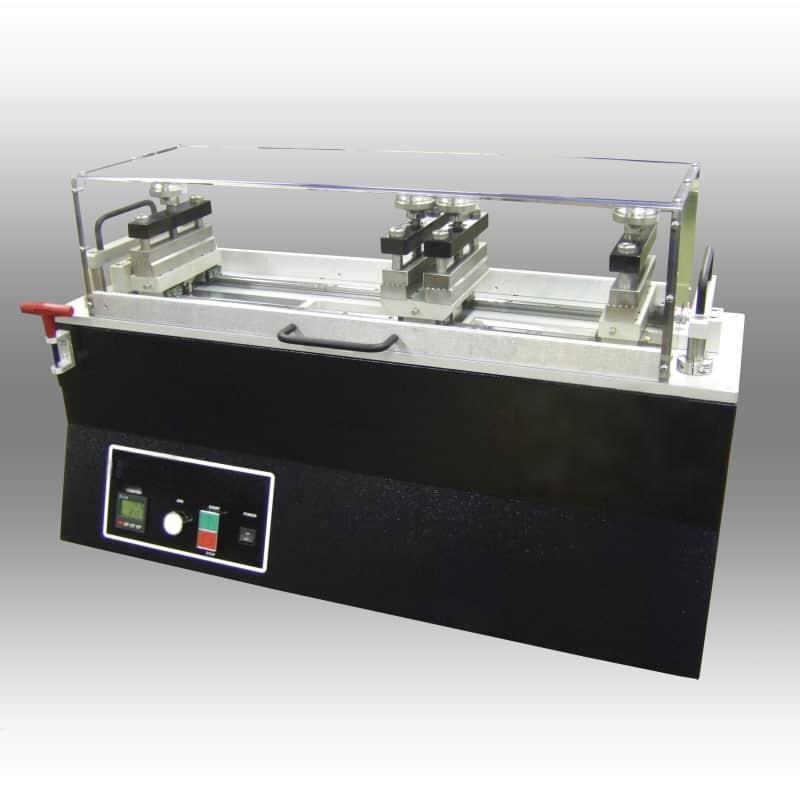

SCHAP Seam Fatigue Tester for Textile & Apparel Durability
StandardISO 13935-1/2 (Textiles – Seam Fatigue Testing for Woven Fabrics)ASTM D1683 (Standard Test M
Email: info@standard-groups.com
Content
Standard
- ISO 13935-1/2 (Textiles – Seam Fatigue Testing for Woven Fabrics)
- ASTM D1683 (Standard Test Method for Failure in Sewn Seams of Woven Apparel Fabrics)
- AATCC 136 (Bonding Strength of Fusible Interfacing in Garments)
Product Advantages
- Precision Seam Fatigue Analysis
- Dual-axis motion system (0–50 mm stroke, 1–5 Hz frequency) replicates real-world bending and stretching.
- Universal Material Compatibility
- Tests woven, knitted, and technical fabrics, including leather, denim, and coated materials.
- Automated Cycle Testing
- Programmable cycles (1–999,999 strokes) with automatic failure detection (e.g., seam breakage).
- User-Centric Design
- 7-inch touchscreen interface with multilingual support (English, Spanish, French, Chinese) and one-touch test start.
- Modular Clamping System
- Quick-release fixtures for flat seams, curved seams, and buttonholes.
Product Features
- Testing Modes:
- Dynamic Stretch: Simulates body movement (e.g., knee bends, elbow flexing).
- Cyclic Bending: Replicates folding during storage or washing.
- Real-Time Monitoring:
- High-resolution force sensor (±0.01 N accuracy) and displacement encoder capture seam degradation.
- Data Management:
- Cloud-compatible software stores 100,000+ test results and generates ISO/ASTM/AATCC-compliant reports.
- Safety & Compliance:
- Overload protection, emergency stop, and CE/UL certification for laboratory safety.
Technical Parameters
| Parameter | Specification |
|---|
| Maximum Test Force | 500 N (±0.1% accuracy) |
| Frequency Range | 1–5 Hz (adjustable) |
| Stroke Length | 0–50 mm (±0.05 mm resolution) |
| Test Stations | 2 (expandable to 4) |
| Dimensions (L×W×H) | 600×400×300 mm |
| Weight | 45 kg |
| Operating Environment | 15–35°C, ≤85% RH (non-condensing) |
| Power Supply | 220V/110V AC, 50/60Hz, 300W |
Accessories Included
- Testing Clamps: 4× universal fixtures for flat seams, curved seams, and buttonholes.
- Calibration Kit: Force sensor, displacement encoder, and NIST-traceable certification.
- Sample Templates: 10× pre-cut patterns for standard seam types (e.g., jeans, jackets).
- User Manual: Multilingual guide (English, Spanish, French, Chinese) with maintenance tips.
- Safety Gear: Heat-resistant gloves, face shield, and emergency eyewash station.
Ideal For:
- Garment manufacturers (denim, outerwear, sportswear QC)
- Textile mills (fabric seam strength validation)
- Retail brands (apparel durability testing)
- Third-party labs (ISO/ASTM/AATCC certification)
