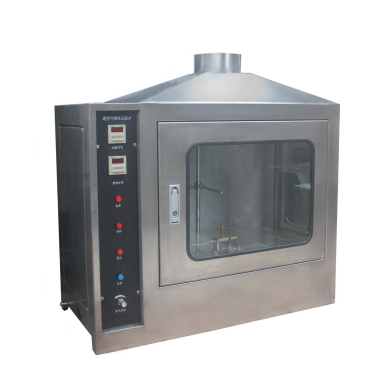

Building material burning tester

Technical specifications:The Building material burning tester is designed and manufactured according

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Technical specifications:

The Building material burning tester is designed and manufactured according to the standard gb8626-88 and is used to determine whether the building materials are flammable under the specified conditions.The Building material burning tester consists of two parts: the control box and the combustion box. The control system has the function of automatic ignition, automatic gas supply and automatic timing. The operation is simple and convenient.

Structural Features:

1. Chamber material: stainless steel mirror

2. Test folder: two U-shaped stainless steel frame structure with a thickness of 5.0mm

3. burner: a 45 degree angle with the horizontal

4. flue air flow rate: 0.7m / s

5. anemometer measurement accuracy: ± 0.1m / s

Standard:

GB8626－2007, ISO11925-2:2002, GB/T10801.2－2002

The basic specifications:

dimensions of the box size test box	700mm x 400mm x 810mm, and the top of the box has 150mm smoke vent. The front and right side are equipped with a glass observation window with a stainless steel mesh at the bottom
Burner size parameter burner by aperture	The nozzle and regulator of 0.17mm are composed of four 4mm air suction holes
Casting time	0 ~ 99 minutes 99 seconds can be set
The ignition time	0 ~ 99 minutes 99 seconds can be set
The flame height	can be adjusted to 20 + 2mm by standard
Combustion gases	used in the purity of more than 95% propane gas
Burning Angle	45 °
whole set of configuration	composed of control box, combustion box body, burner, solenoid valve, high-voltage igniter, signal control line and sample bracket.
Power	AC 220V / 50

Main feature:

1. box test apparatus using the S304 from stainless steel plate bending, beautiful shape, smooth lines, smoke resistant, corrosion-resistant, anti-aging, durable.

2. The test device is equipped with a burner flame measurement scale, the burner flame adjustment convenient, flexible and accurate.

3. The sample holding structure according to the standard required by strictly making the specimen clamping, fast, good combustion results.

4. The touch-button design, servo motor control, automatic ignition reset.

5. Used in universities, research institutes, testing units, insulation materials production enterprises

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
