StandardASTM D4966 (Standard Test Method for Abrasion Resistance of Textile Fabrics)ISO 12947-1/2/3/
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

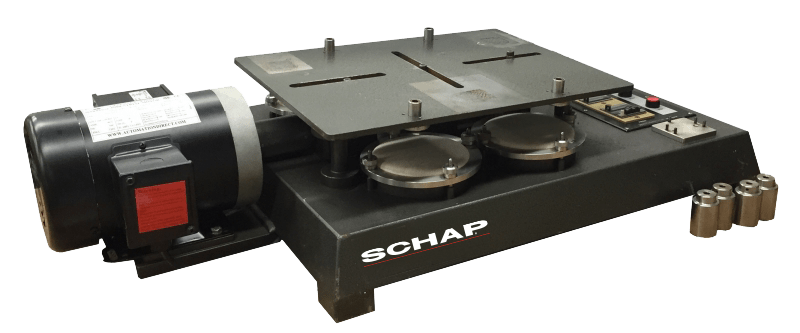

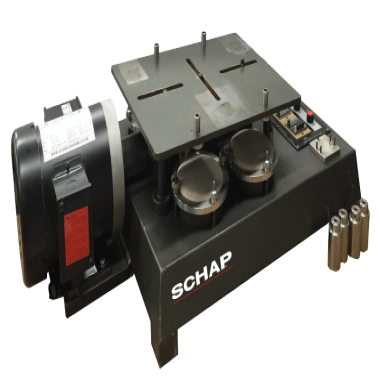

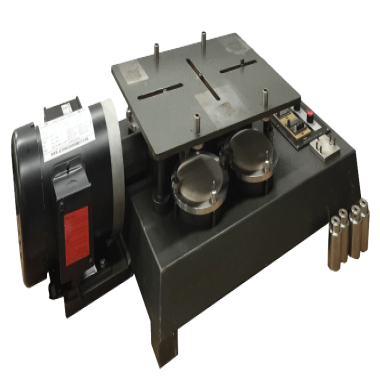

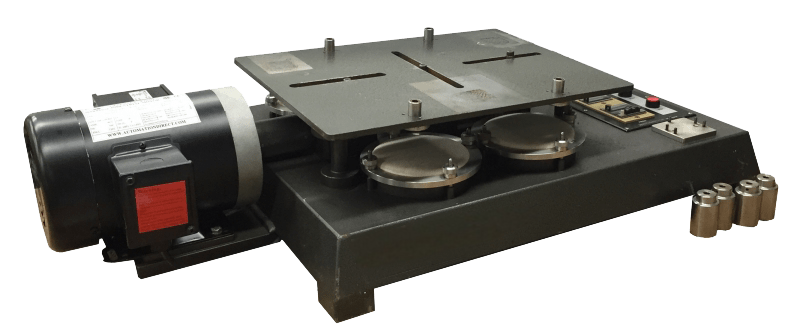

The Martindale Abrasion Tester is a precision instrument designed to evaluate the abrasion and pilling resistance of fabrics, leathers, and coated materials under controlled cyclic motion. Operating at a standard cycle rate of 47.5 ± 2.5 cycles per minute (CPM), it provides reliable and repeatable results for quality control and research applications.
Textile manufacturers (fabric QC for apparel, upholstery, automotive interiors)
Retail brands (garment durability testing)
Research institutes (material science innovation)
Third-party labs (ISO/ASTM certification)
ASTM D4966 (Standard Test Method for Abrasion Resistance of Textile Fabrics)
ISO 12947-1/2/3/4 (Textiles - Determination of the Abrasion Resistance of Fabrics by the Martindale Method)
ISO 5470-2 (Rubber- or Plastics-Coated Fabrics - Abrasion Resistance)
Abrasion Resistance: Measures fabric weight loss after cyclic abrasion.
Pilling Assessment: Evaluates surface fuzzing and pill formation (1–5 scale).
High-resolution cameras capture wear patterns every 100 cycles.
Cloud-compatible software stores 50.000+ test results and generates ISO/ASTM-compliant reports.
Overload protection, emergency stop, and CE certification for laboratory safety.
| Parameter | Specification |
|---|---|
| Number of Stations | 9 (expandable to 12) |
| Pressure Range | 1–12 kPa (adjustable) |
| Speed Range | 20–75 RPM (±1 RPM accuracy) |
| Cycle Counter Capacity | 1–999.999 strokes (digital display) |
| Dimensions (L×W×H) | 800×600×500 mm |
| Weight | 120 kg |
| Operating Environment | 15–35°C, ≤85% RH (non-condensing) |
| Power Supply | 220V/110V AC, 50/60Hz, 1.2kW |
Abrasion Heads: 9× standard wool felt abrasives (dry/wet compatible).
Calibration Kit: Pressure gauge, speedometer, and NIST-traceable certification.
Sample Clamps: 12× quick-release holders for textiles, leather, and rigid materials.
User Manual: Multilingual guide (English, Spanish, French, Chinese) with maintenance tips.
Carrying Case: Rugged ABS case with foam inserts for safe transport.
The Martindale Abrasion Tester provides precise, reliable, and standardized evaluation of material durability. Its multi-station design, programmable cycles, and adjustable parameters make it suitable for both industrial and laboratory environments requiring high-throughput testing.
(1) What is the Martindale Abrasion Tester?
It is an instrument used to evaluate abrasion resistance and pilling of fabrics, leathers, and other materials under controlled cyclic motion.
(2) What is the Martindale Abrasion Tester used for?
It is used to determine wear durability and pilling performance for textiles, coatings, and other surfaces in research, quality control, and production.
(3) What is the working principle of the Martindale Abrasion Tester?
The tester applies reciprocal motion to a specimen under specified pressure using standard abrasive heads, simulating wear cycles for reliable testing.
(4) Why is the Martindale Abrasion Tester important?
It ensures material performance meets international standards, supporting consistent quality and reducing product failure due to abrasion or pilling.
(5) What industries is the Martindale Abrasion Tester suitable for?
Textile, apparel, footwear, furniture, automotive interiors, coatings, laminates, and laboratory testing facilities.
