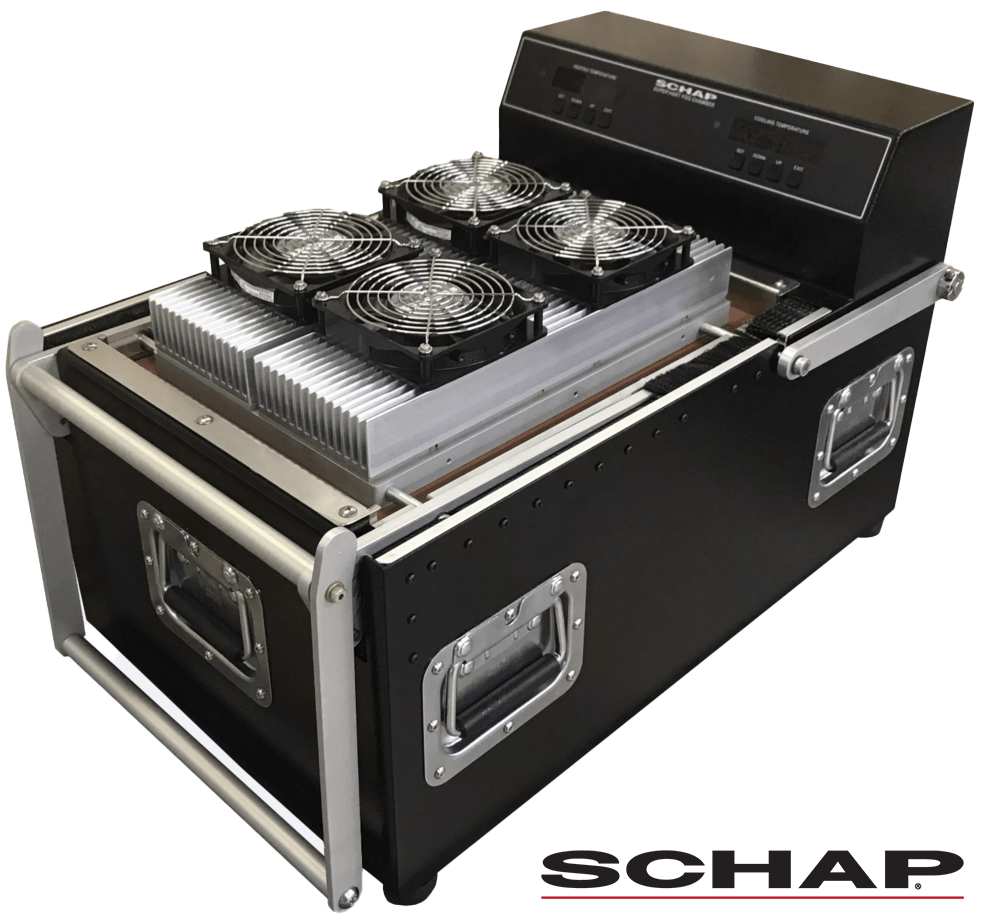

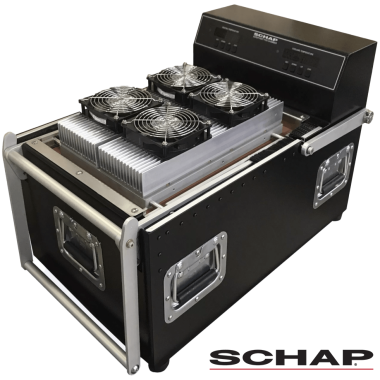

SCHAP Fogging Tester for Automotive & Textile Materials
StandardDIN 75201 (Determination of the Evaporation Behavior of Materials in Motor Vehicles)ISO 6452
Email: info@standard-groups.com
Content
Standard
- DIN 75201 (Determination of the Evaporation Behavior of Materials in Motor Vehicles)
- ISO 6452 (Rubber- or Plastics-Coated Fabrics — Determination of Fogging Characteristics)
- SAE J1756 (Determining the Fogging Characteristics of Interior Automotive Materials)
Product Advantages
- Precision Fogging Analysis
- Dual-mode testing (glass plate and aluminum foil methods) captures both volatile and semi-volatile compounds.
- High-Temperature Stability
- Temperature-controlled chamber (50–150°C, ±0.5°C accuracy) simulates extreme cabin environments.
- Automated Data Collection
- Integrated spectrometer (300–1100 nm wavelength range) and AI-powered software analyze fog density in real time.
- User-Centric Design
- 10.1-inch touchscreen interface with multilingual support (English, German, Chinese, Spanish) and one-touch calibration.
- Cost-Effective Compliance
- Reduces testing time by 40% compared to traditional methods, with ISO/ASTM-compliant reports generated automatically.
Product Features
- Testing Modes:
- Cold Fogging: Simulates low-temperature storage conditions.
- Hot Fogging: Replicates high-temperature cabin exposure (e.g., summer heat).
- Real-Time Monitoring:
- High-resolution camera captures fogging patterns every 5 seconds.
- Data Management:
- Cloud-compatible software stores 50,000+ test results and generates DIN/ISO/SAE reports.
- Safety Features:
- Overheat protection, emergency venting, and CE/UL certification for laboratory safety.
Technical Parameters
| Parameter | Specification |
|---|
| Temperature Range | 50–150°C (±0.5°C accuracy) |
| Spectrometer Wavelength | 300–1100 nm (±1 nm resolution) |
| Data Acquisition Rate | 10,000 Hz (fog density channel) |
| Chamber Volume | 15 liters (stainless steel interior) |
| Power Supply | 220V/110V AC, 50/60Hz, 1.8kW |
| Dimensions (L×W×H) | 600×500×800 mm |
| Weight | 85 kg |
| Operating Environment | 15–35°C, ≤85% RH (non-condensing) |
Accessories Included
- Testing Kits:
- 2× glass plates (150×100 mm) and 10× aluminum foil sheets.
- Calibration Tools:
- Temperature sensor, spectrometer reference, and NIST-traceable certification.
- Safety Gear:
- Heat-resistant gloves, face shield, and fume extraction hose.
- User Manual & Software:
- Digital guide (multilingual) + AI analytics platform for fogging prediction.
- Environmental Chamber:
- Temperature-controlled enclosure with corrosion-resistant coating.
Ideal For:
- Automotive OEMs (interior trim, dashboard, and seat material testing)
- Textile manufacturers (apparel, upholstery, and synthetic fabrics)
- Regulatory testing agencies (DIN/ISO/SAE compliance)
- Consumer product safety laboratories
