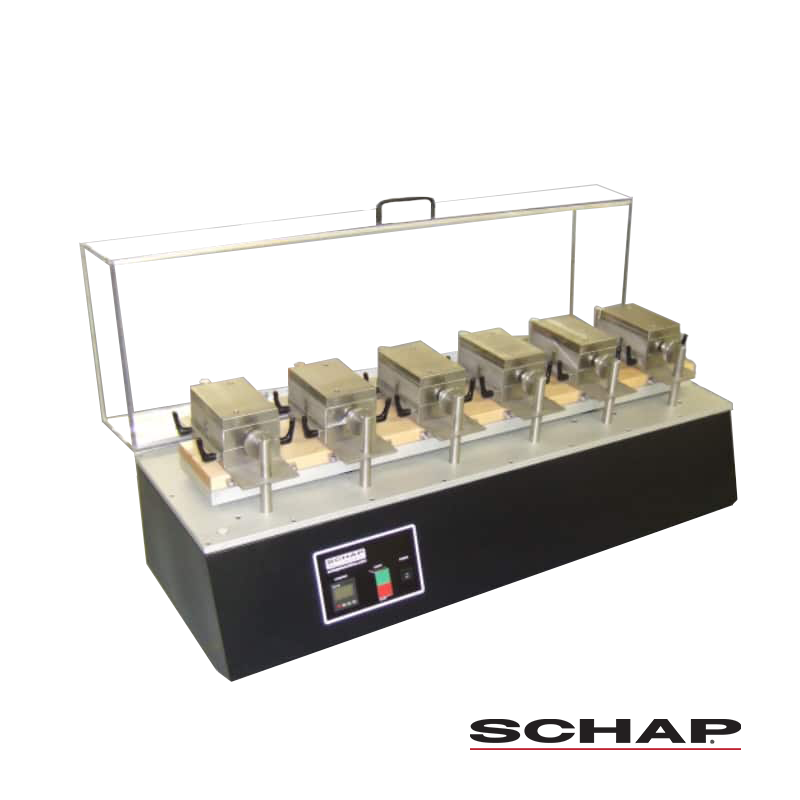

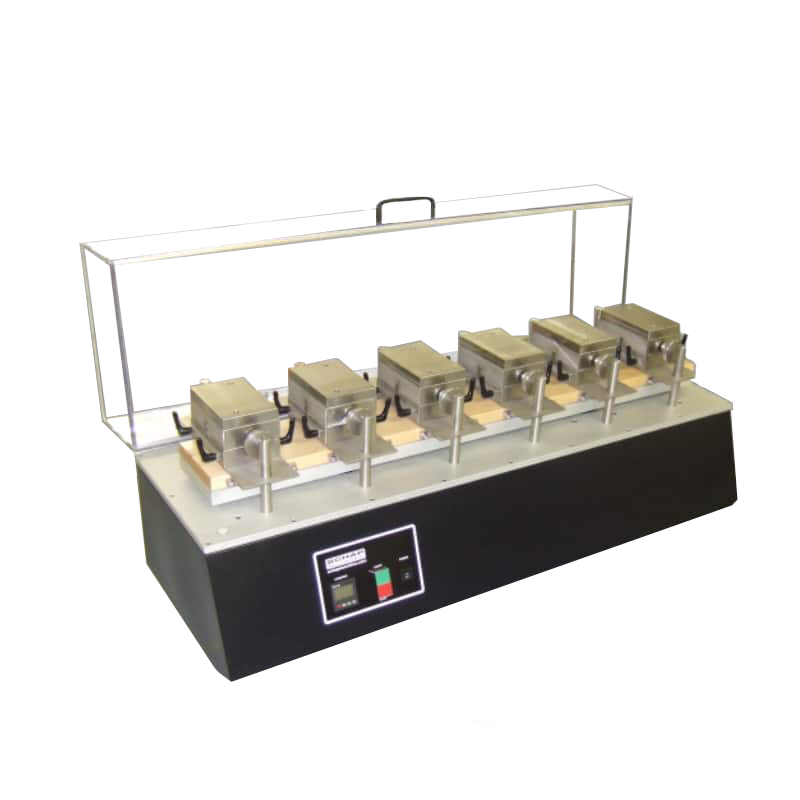

SCHAP Pilling Tester for Fabric & Textile Durability Tester
StandardAATCC 135 (Dimensional Changes in Automatic Home Laundering)ISO 12945-2 (Textiles - Determin
Email: info@standard-groups.com
Content
Standard
- AATCC 135 (Dimensional Changes in Automatic Home Laundering)
- ISO 12945-2 (Textiles - Determination of Fabric Propensity to Surface Fuzzing and Pilling)
- ASTM D3512 (Standard Test Method for Pilling Resistance and Other Related Surface Changes of Textile Fabrics)
Product Advantages
- Precision Pilling Simulation
- Dual-head design with adjustable pressure (0.5–2.5 kPa) and speed (20–120 RPM) replicates real-world abrasion.
- Universal Material Compatibility
- Tests woven, knitted, and nonwoven fabrics, including delicate materials like cashmere and synthetic blends.
- Cost-Effective Automation
- Programmable cycles (1–999,999 strokes) and digital counter reduce manual oversight.
- User-Friendly Operation
- 7-inch touchscreen interface with multilingual support (English, Spanish, French, Chinese) and one-touch test start.
- Portable & Durable
- Compact design (50×40×30 cm) and lightweight build (25 kg) for easy relocation between labs.
Product Features
- Adjustable Testing Parameters:
- Pressure Control: 0.5–2.5 kPa (±0.05 kPa accuracy) via pneumatic system.
- Speed Range: 20–120 RPM (±1 RPM accuracy) for light to heavy abrasion.
- Cycle Counter: Digital display with pause/resume function.
- Sample Handling:
- Quick-release clamps secure circular specimens (115 mm diameter) and irregular shapes.
- Replaceable abrasive surfaces (velcro, cork, rubber) for varied testing scenarios.
- Safety & Compliance:
- Overload protection, emergency stop, and CE certification for laboratory safety.
Technical Parameters
| Parameter | Specification |
|---|
| Abrasion Head Diameter | 90 mm (standard) / 120 mm (optional) |
| Pressure Range | 0.5–2.5 kPa (adjustable) |
| Speed Range | 20–120 RPM (±1 RPM accuracy) |
| Cycle Counter Capacity | 1–999,999 strokes (digital display) |
| Dimensions (L×W×H) | 500×400×300 mm |
| Weight | 25 kg |
| Operating Environment | 15–35°C, ≤85% RH (non-condensing) |
| Power Supply | 220V/110V AC, 50/60Hz, 500W |
Accessories Included
- Abrasion Heads: 2× standard 90mm rubber tips (dry/wet compatible).
- Calibration Kit: Pressure gauge, speedometer, and NIST-traceable certification.
- Sample Clamps: 4× quick-release holders for textiles and rigid materials.
- User Manual: Multilingual guide (English, Spanish, French, Chinese) with maintenance tips.
- Carrying Case: Rugged ABS case with foam inserts for safe transport.
Ideal For:
- Textile manufacturers (fabric QC for apparel, upholstery)
- Retail brands (garment durability testing)
- Research institutes (material science innovation)
- Third-party labs (ISO/AATCC certification)
