Introduction to the DeviceThis device can accurately and quickly measure the stiffness and recoverab
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

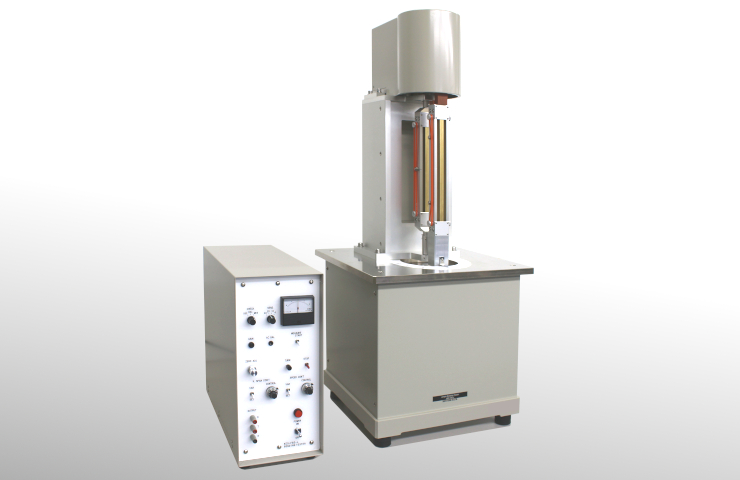

The Large Bending Tester accurately and quickly measures factors related to curvatures in small bending moments (bending hardness and recoverability). Adding to the small area available with conventional models, the STD-FB2-L enables measurements that were not previously possible, such as large bending moments and bending rigidity of thick sheet material and composites (products) made from multiple materials. The device also offers excellent data reproducibility in addition to easy measurement.
The tester has been put to use in a variety of industries, including the automotive industry.
GB/T 2679.3. GB/T 23144. ISO 5628. ISO 2493. ASTM D 5342
Measure hardness and recoverability when bending paper, non-woven fabric, and cloth through pure bending tests.
Measure treatment differences (such as flexible processing surface treatment).
Hardness and recovery capabilities when bending can be read instantly, allowing for simple data analysis.
Measured values are obtained using a power meter with sensitivity matching that of a fingertip, so results are consistent with sensory evaluations.
| Product Name | Large bending Tester |
| Dimensions (W × D × H) *approx. | Measuring unit: 430 × 370 × 990 mm Amplifier: 180 × 400 × 400 mm |
| Weight *approx. | Measuring unit: 80 kg Amplifier: 10 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | STD-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | 200 × 200 mm (standard) Thickness: 15 mm (max.) |
