Function of the TesterThis tester analyzes and mechanizes the "bending" hand movements of craftsmen
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

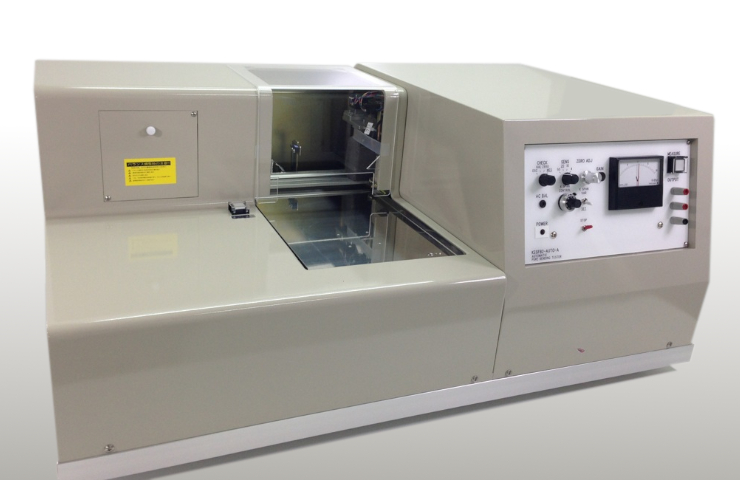

The Pure Bending Tester analyzes hand movements-referred to as "bending"-performed by artisans and professionals when judging a fabric's texture. This device performs these movements mechanically, making it possible to obtain objective numerical data.
Obtainable data includes bending rigidity and recoverability for such targets as general fabric, cloth, paper, non-woven fabric, and film.
Bending characteristic data is useful for determining stiffness and fullness, softness, anti-drape stiffness.
GB/T 2679.3, GB/T 23144, ISO 5628, ISO 2493, ASTM D 5342
Improved data accuracy
Motor chucking makes it easier to mount thin samples that would otherwise be difficult to mount. This eliminates errors caused by the user and improves the accuracy of data.
Display resolution (of software): 0.0001
The ability to measure from extremely small values up to a maximum of 50 gf·cm means measurement can be performed for a wide variety of samples.
| Dimensions (W × D × H) *approx. | Measuring unit: 830 × 530 × 370 mm |
| Weight *approx. | Measuring unit: 60 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | STD-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | 200 × 200 ｍm (standard) width: 200 mm (max.) thickness: 1 mm (max.) |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
