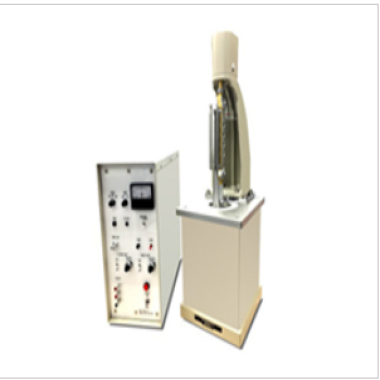

Bending Tester STD- FB2 - S

Compliance StandardsASTM D790 (Plastics Flexural Properties)ISO 178 (Flexural Strength of Rigid

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Compliance Standards

ASTM D790 (Plastics Flexural Properties)

ISO 178 (Flexural Strength of Rigid Plastics)

SAE J2748 (Automotive Composite Flexure)

IEC 62133-2 (Battery Module Bending)

EN 1170-5 (GRC Flexural Testing)

Technical Parameters

Parameter	Specification
Force Range	0.1N - 2000N (±0.5%)
Deflection Accuracy	±1μm @ 10mm span
Test Speed	0.1 - 500 mm/min
Support Spans	10-500mm (adjustable)
Bending Radius	0.5-100mm (±0.01mm)
Angular Resolution	0.01°

Key Features

3-point & 4-point bending configurations

Real-time curvature measurement system

Automatic neutral axis calculation

High-speed strain mapping (1000 fps)

Multi-stage bend/reverse bend cycles

Test Capabilities

Test Type	Standard	Parameters
Flexural Modulus	ASTM D790	2% strain limit
Bending Fatigue	ISO 12106	10⁷ cycles @ 20Hz
Springback Analysis	SAE J2748	180° bend + release

Measurement System

Dual-axis load cell (Fz + Mx)

Laser-based deflection tracking

Surface strain mapping via DIC

Real-time moment-curvature plots

Standard Configuration

Stiffness-rated frame (100kN/m)

Interchangeable rollers (R1-R50mm)

TestXpert III analysis software

2000N capacity load cell

Automotive Options

Battery pack torsion simulation

Seat structure cyclic loading

Door seal compression-bend

Thermal cycling (-40°C to 150°C)

Safety Systems

Over-moment protection

Emergency roller retraction

Specimen ejection detection

Automatic force dump circuit

Implementation Notes

Calibrate per ISO 5893 (Roller alignment)

Maintain 40-60% RH for polymer tests

Use alignment jig for multi-layer stacks

Ground isolation for electronic components
