Spray Aerosol Enclosed Space Tester

Aerosol spray enclosed space test instrument is used to assess flammability of the aerosol in a closed or restricted space. It is in line with the United Nations "on the Recommendations on the Transport of Dangerous Goods • Manual of Tests and Criteria" 31.5 enclosed space ignition test and "dangerous sprays enclosed space ignition test methods."

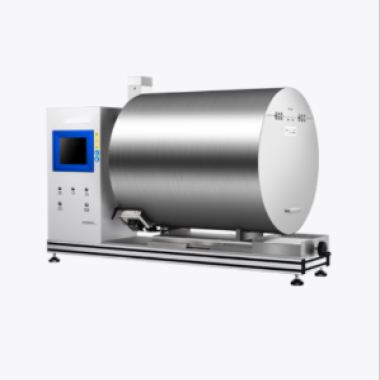

Instrument consists of two parts, the display control section, the detection system composed of a cylindrical container body detection system, built-in light sensors and high-precision thermocouple sensor automatically determine whether knocking occurred. The operator can monitor the entire testing process through the display control section LCD screen.

Standards

(1)GB/T 21631-2008

(2)GAT536

(3)NY/T 1860

Product Features

(1) It adopts an embedded processor and the Windows CE operating system.

(2) With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

(3)It integrates two working modes: the "standard mode" and the "custom mode".

(4)The aerosol can sprays automatically, and the aerosol can clamping device can automatically turn the can upright and upside - down. 5. Automatic timing during spraying.

(5) With a dual - detection module consisting of a pressure sensor and a nanosecond - level photosensitive sensor, it can automatically detect whether the flame is burning or whether an explosion occurs in an enclosed space.

(6) It is equipped with a ventilation system to promptly discharge the smoke and unburned aerosol in the drum, ensuring the accuracy of the test and the safety of the experimenters.

(7)The test process is fully automated, requiring no manual intervention. It supports functions such as parameter setting, data storage, and report viewing.

(8) It is equipped with a temperature and humidity module to monitor the temperature and humidity of the test environment in real - time.

Technical parameters

Accessoriess

(1)Aerosol Generator: Produces controlled aerosols for testing containment and dispersion.

(2)Sensors and Detectors: Measure aerosol concentration, particle size, and decay over time.

(3)Chamber Components: Includes doors, seals, and panels to maintain a controlled environment.

(4)Control and Data Acquisition Unit: Monitors and records real-time test data.

Test Procedures

(1)Sample Placement: Position the test object or material securely inside the chamber.

(2)Aerosol Introduction: Activate the aerosol generator to release a defined aerosol concentration.

(3)Monitoring: Use sensors to measure aerosol distribution, particle behavior, and decay rates.

(4)Data Analysis: Evaluate containment, filtration, or protective efficiency based on recorded measurements.

Maintenance Information

(1)Routine Inspection: Check sensors, electrical connections, seals, and chamber integrity before each test.

(2)Cleaning: Wipe the chamber, sensors, and generator components to remove residues and prevent contamination.

(3)Calibration: Regularly verify sensor accuracy and aerosol generator output for consistent results.

(4)Storage: Keep the device in a dry, dust-free, and stable environment to ensure longevity and performance.

FAQ

1. What is a Spray Aerosol Enclosed Space Tester used for?

It is used to evaluate aerosol dispersion, containment, and filtration efficiency within enclosed spaces, providing critical data for safety and environmental control studies.

2. Which materials or systems can be tested?

The tester can assess enclosures, protective equipment, filters, ventilation systems, and materials that interact with airborne particles or aerosols.

3. How does the Spray Aerosol Enclosed Space Tester work?

A controlled aerosol is generated and introduced into the chamber, while sensors measure particle concentration, distribution, and decay to determine containment or filtration performance.

4. What safety features are included?

It is equipped with chamber seals, emergency stops, protective shields, and interlocks to ensure safe operation during aerosol testing.

5. How should the tester be maintained?

Regular maintenance includes inspecting sensors and seals, cleaning the chamber and generator components after each test, calibrating sensors periodically, and storing the device in a dry, dust-free environment.
