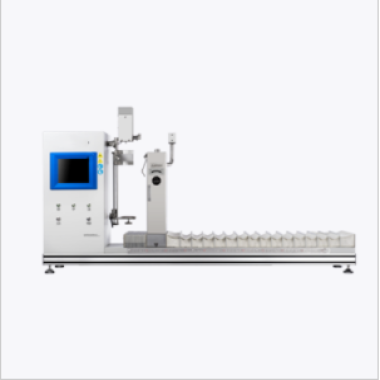

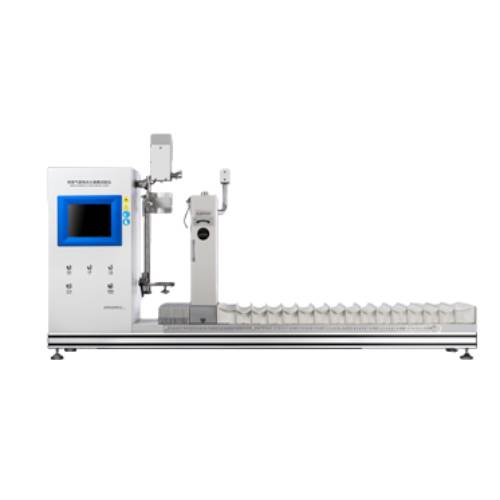

Spray Aerosol Ignition Distance Tester

Product Description

Conforms to UN Recommendations on the Transportation of Dangerous Goods - Manual of Tests and Criteria 31.4 Ignition Distance Test for Spray Aerosols and GB/T 21630-2008 Test Method for Ignition Distance for Dangerous Goods Spray Aerosols.

Standards

GB/T 21630-2008

GAT536

NY/T 1860

Product Features

1. It adopts an embedded processor and the Windows CE operating system.

2. With an 8 - inch liquid - crystal touch screen, it can display the test status in real - time.

3. It integrates two working modes: the "standard mode" and the "custom mode".

4. The aerosol sprays automatically, and the aerosol can clamping device can automatically make the can stand upright or turn it upside - down.

5. The nanosecond - level photosensitive sensor detection module automatically detects whether the spray is burning.

6. Driven by a hybrid stepping motor and equipped with an optical encoder, it enables precise positioning of the measurement position.

7. It uses a spark lighter as the ignition source, producing a blue - colored non - glowing flame with a height of 4 - 5 cm, and the flame height is adjustable.

8. The test process is fully automated, requiring no manual intervention. It supports functions such as parameter setting, data storage, and report viewing.

9. The dedicated fire - proof accordion cover can effectively prevent equipment contamination.

10. It is equipped with a temperature and humidity module to monitor the temperature and humidity of the test environment in real - time.

Technical parameters
