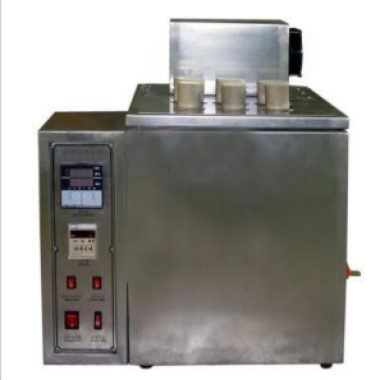

Car wire heat resistant water (salt water) testing machine

Scope of application:

It is suitable for long-term (more than 14 days) DC voltage and salt water resistance test of automobile wire and locomotive wire, which meets ISO6722. SAEJ 1128. QCT 730. JASOD611. EN50305. EN50395 and other test standards.

Main parameters:

1. Power supply: 380V 50Hz

2. heating power: 6000W(salt water resistance type)

3. digital display temperature control: room temperature ——99.9℃

4. intelligent PID control, accuracy: ±0.2℃

Thermocouple PT100 anticorrosive type,

5. anticorrosive pottery material: ∮700 X420mm

6. PVC plate is used to close the fence around the pottery cylinder

7. layman size: 800×800X600(mm)

8. Motor mixing method, mixing rod is non-metallic material

9. equipped with water level ball valve (anti-corrosion material)， can control the height of the water level

10. equipped with automatic water pump, can maintain a certain test water level

11. optional: 48V DC power supply

12. Optional: High voltage DC stability tester JN-DC-50305: DC voltage: DC0——5KV, can be recorded

The leakage current in the test process, and form EXECL report
