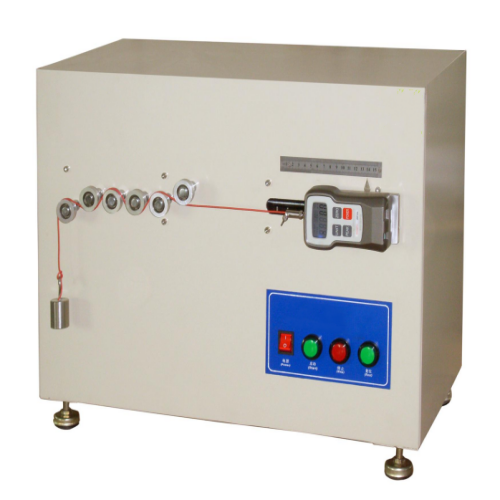

Scope of application:
Suitable for wire flexibility test with nominal cross-section ≤3.0mm2.
Applicable standards:
Engineering Specification-Ford Global Wire specification PART NO. ES-AU5T-1A348-AA
Main parameters:
1, drawing speed: 50mm/min（adjustable）
2, load: 2N
3, guide wheel: outer diameter: 36mm, inner diameter: 29mm, inner groove radius: 9mm, thickness: 10mm each two guide wheel center distance: 42mm.
4, stretch 125mm can automatically stop
5, tensile meter maximum range: 50KG（digital display）
Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
