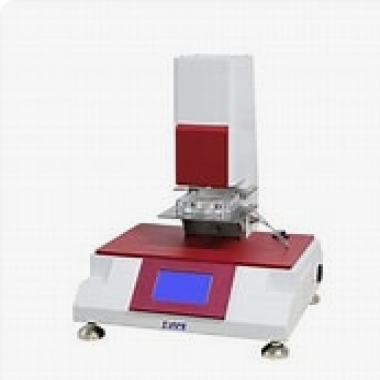

Liquid Sliding Penetration Comprehensive Performance Tester

The G373 Liquid Sliding Penetration Comprehensive Performance Tester is a precision instrument designed to evaluate the liquid penetration properties of diapers and hygienic non-woven fabrics. It measures strike-through, back-seepage, and penetration efficiency, simulating real-world liquid exposure to assess product performance and reproducibility. The instrument combines a solenoid-controlled funnel, adjustable sample holder, and automated data acquisition for accurate, repeatable testing.

Application

The tester is widely used in:

(1) Diaper and hygiene product manufacturing: evaluating absorbency, strike-through, and backflow resistance

(2) Non-woven fabric R&D: testing liquid penetration properties of sanitary materials

(3) Quality control laboratories: verifying batch-to-batch performance of diapers and pads

(4) Third-party testing institutions: product performance certification

(5) Regulatory and supervisory agencies: monitoring compliance with hygiene and safety standards

Standards

QB/T 2493-2000: Diapers (including diaper care/pads)

FZ/T 60017-1993: Hygienic thin non-woven fabric liquid permeability test method

ISO 9073-6: Nonwovens – Determination of liquid penetration

ASTM F1869/F1869M: Standard test method for liquid penetration resistance of textiles

Product Features

(1) Solenoid-controlled funnel: simulates liquid application for penetration and strike-through testing.

(2) Adjustable mechanical sample holder: allows multi-test setups with precise angle control for reproducibility.

(3) Sensor-integrated control system: captures real-time liquid penetration data.

(4) Data processing software: transmits test results to a computer, generates curves, and supports in-depth analysis.

(5) Automated operation: simplifies the test process for consistent, accurate results.

Technical Specifications

Accessories

Standard sample holder with adjustable angle

Solenoid-controlled funnel

Pressing block (Ø100 mm)

Data acquisition and software package

Calibration tools

Test Procedures / Maintenance

(1) Place the diaper or non-woven sample on the sample holder and adjust to the specified angle.

(2) Fill the funnel with the test liquid and set the solenoid valve for controlled flow.

(3) Start the test: the liquid penetrates the sample, and sensors capture real-time data.

(4) Apply the pressing block for 1 minute if required to simulate pressure.

(5) Record strike-through, back-seepage, and penetration data; analyze via software.

(6) After testing, clean the funnel, sample holder, and pressing block to avoid residue buildup.

(7) Periodically calibrate the flow rate, angle, and sensor system to ensure consistent results.
