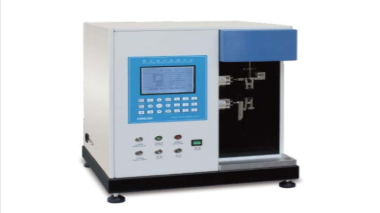

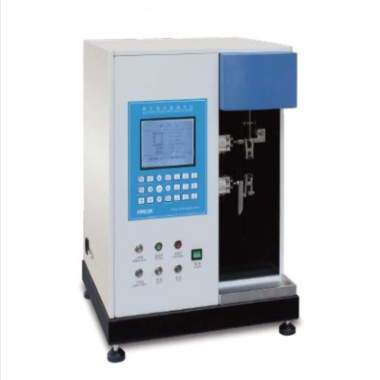

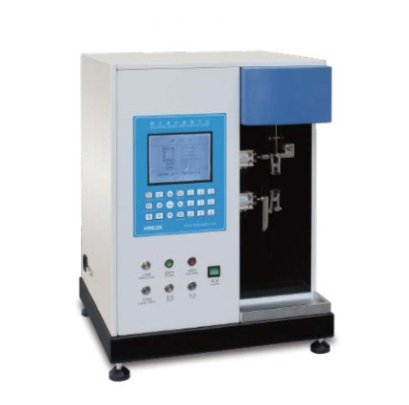

Electronic Single Fiber Strength Meter

The Electronic Single Fiber Strength Meter is a precision instrument designed to measure the mechanical properties of single fibers, including breaking strength, elongation, and modulus. It integrates high-precision pneumatic clamps, microcomputer control, and real-time data acquisition to provide accurate, repeatable, and reliable fiber testing for research, quality control, and textile manufacturing applications.

Application

This instrument is widely used in:

Textile fiber research and development laboratories.

Quality control in cotton, wool, silk, synthetic, and specialty fiber production.

Determination of single fiber properties for spinning, yarn production, and composite materials.

Educational institutions for teaching fiber mechanical properties.

Textile testing agencies and standards compliance verification.

Standards

The Electronic Single Fiber Strength Meter complies with:

GB/T 14337: Single fiber strength determination

GB/T 9997: Cotton fiber testing

GB/T 13835.5: Wool fiber testing

GB/T 21120: Silk fiber testing

ISO 5079: Textile – single fiber strength determination

ISO 11566: Wool fiber testing

ASTM D3822: Standard test method for tensile properties of single fibers

BS 4029: British single fiber testing standard

Features

(1) Microcomputer-controlled system with online communication capability.

(2) High-precision, high-speed force measurement system for accurate data.

(3) Patented pneumatic clamps providing constant clamping force to prevent fiber damage or slippage.

(4) Low-noise and stable drive system with precision ball screws and stepper motors.

(5) Direct USB connection for data transfer, report generation, graphics, and database management.

(6) Large-screen LCD with Chinese interface and printer output for test reports and curves.

(7) Memory function for storing up to 300 test data sets.

(8) LED-lit operating area for better visibility and sample handling.

Parameters

Accessories

Standard package includes: main unit, pneumatic clamp set, power cable, printer, and user manual.

Optional software for enhanced data analysis and export.

Calibration fiber standards for routine verification.

Test Procedures

(1) Prepare and condition fiber samples according to standard requirements.

(2) Mount a single fiber in the pneumatic clamps.

(3) Set gauge length, tensile speed, and test mode on the LCD interface.

(4) Start the test and monitor the force-elongation curve.

(5) View results on the screen and/or print test report with tensile curve.

(6) Repeat for additional samples, storing data in memory as needed.

Maintenance

Regularly inspect and clean pneumatic clamps to prevent contamination.

Calibrate the force measurement system periodically using standard fibers.

Keep the instrument in a dust-free, dry environment.

Ensure stable AC power to prevent measurement errors.

Avoid mechanical shocks and handle the LCD and printer with care.
