Tile Abrasion Testing Machine

Compliance Standards

ISO 10545

ISO 9352

GB/T 3810

GB/T 23864-2009

Applications

This is used for determination of resistance to wear for Cement & Concrete flooring tiles.

Details

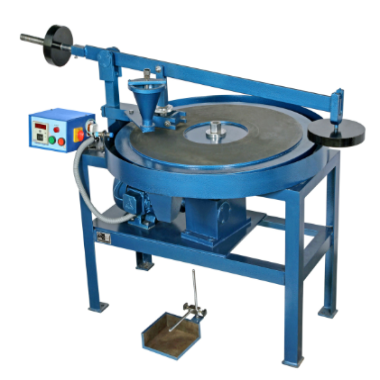

The Abrasion testing machine consists of following parts and accessories

A replaceable grinding path fitting on to a disc rotating its vertical axis.

The rotating disc and grinding path are enclosed by a circular tray.

A bracket to hold the test specimen of 7.06 cm x 7.06 cm size.

The loading is by a counter balanced lever.

A funnel is provided to facilitate charging the grinding path with abrasive powder.

Supplied complete with automatic preset revolution counter and one 7.5 kg weight

Also supplied with 1 kg abrasive powder and dial thickness gauge of 0.01 x 25mm to measure abrasion of tile after the test.

Suitable for operation 230 V, single phase, Ac supply.

Technical Parameters

Turntable Diameter: 610mm

Turntable Speed: 300 rpm

Eccentricity: 22.5mm

Number of Sample Clamps: 8

Clamp Inner Diameter: 83mm

Clamp Inner Height: 25.5mm

Distance Between Sample Clamp Center and Turntable Center: 195mm

Equal Distance Between Adjacent Clamps

Speed Preset Counter Count Range: 0-999999
