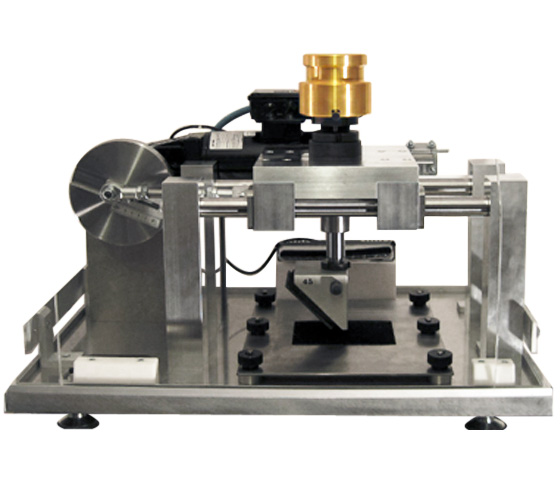

Automotive Floor Mat Abrasion Tester

The Automotive Floor Mat Abrasion Tester is designed for evaluating the abrasion resistance of automotive floor mats and textile floor coverings. The tester simulates the repetitive friction generated by a driver’s heel during vehicle operation and quantitatively assesses material wear behavior under defined load and friction angle conditions.

The equipment is compact, mechanically stable, and easy to operate, making it suitable for routine testing in product development, quality control, and durability verification.

Application

The tester is used for abrasion performance evaluation of automotive interior floor coverings, including but not limited to:

(1) Textile automotive floor mats (tufted carpets, woven or nonwoven carpets)

(2) Rubber, polyurethane, and composite floor mats

(3) Passenger car and commercial vehicle floor coverings

(4) Comparative abrasion behavior of different materials and structures

(5) Development and validation of wear-resistant interior materials

(6) Automotive OEMs, component suppliers, interior material laboratories, and quality control departments

Standards

The tester is designed according to the following standard:

(1) PV 3934 – Abrasion testing of automotive floor coverings and floor mats

Customer-specific or internal standards can be implemented upon request.

Parameters

Features

(1) Realistic abrasion simulation through adjustable load and friction angle

(2) Stable mechanical structure ensuring high repeatability of test results

(3) Simple mechanical adjustment using crank and locking nut mechanisms

(4) Safety protection with guard cover and Siemens safety switch

(5) Suitable for a wide range of floor mat materials, thicknesses, and sizes

Test Procedures

(1) Prepare and cut the floor mat sample with a flat backing surface

(2) Fix the sample on the test platform

(3) Adjust heel penetration depth to 5 ± 1 mm using the slotted nut

(4) Set abrasion load, friction angle, and number of cycles

(5) Start the test and allow the abrasion head to perform reciprocating motion

(6) Stop the test after completion and record wear condition

Maintenance Information

(1) Regularly inspect abrasion head and replace if excessive wear is observed

(2) Keep mechanical transmission parts clean and properly lubricated

(3) Check safety switch and protective cover before operation

(4) Store the equipment in a dry environment to prevent corrosion

FAQ

1.What is this product?

This product is a mechanical abrasion tester for evaluating the wear resistance of automotive floor mats and textile floor coverings under simulated heel friction conditions.

2.What is this product used for?

It is used to assess abrasion resistance, durability, and service life of automotive floor mat materials during product development, quality control, and validation testing.

3.Why is this product important?

Abrasion resistance directly affects the durability, appearance, and safety of automotive interior floor coverings. This tester provides repeatable and standardized evaluation of material wear performance.

4.What industries is this product suitable for?

Automotive OEMs, automotive interior suppliers, floor mat manufacturers, material research laboratories, and quality inspection organizations.

5.What types of this product are available?

A standard Automotive Floor Mat Abrasion Tester according to PV 3934; optional configurations include customized load ranges, friction angles, and customer-specific test cycle settings.
