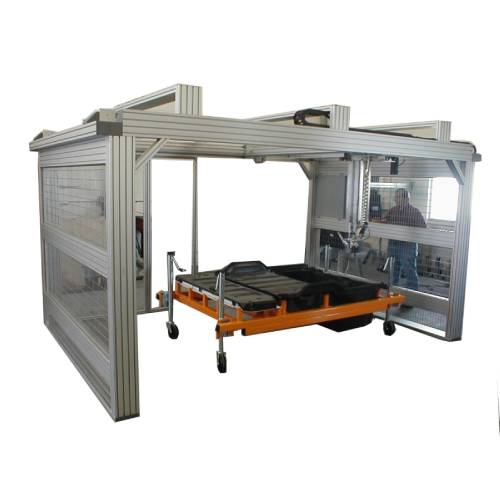

Automotive Bed Liner Strength Tester

The Automotive Bed Liner Strength Tester is a precision testing system designed to evaluate the strength and durability of truck bed liners. It performs routine drop tests and periodic load tests to simulate real-world conditions, ensuring the liner’s performance under repeated impact and load. The system features programmable test sequences and precise data acquisition for up to 100 drop or load positions.

Application

(1) Evaluating strength and durability of truck bed liners in automotive R&D

(2) Conducting routine quality control and batch testing for truck bed liners

(3) Simulating real-world impact and load conditions on automotive beds

(4) Generating position vs. force curves for material assessment

(5) Applicable in automotive manufacturing, component testing labs, and material certification facilities

Standards

(1) Internal automotive drop and load testing standards

(2) ASTM D695 – Standard Test Method for Compressive Properties of Rigid Plastics (for reference)

(3) ISO 178 – Plastics – Determination of flexural properties (for comparative analysis)

(4) SAE J400 series – Automotive interior material strength testing guidelines

Parameters

Features

(1) Supports both drop and load testing for comprehensive strength evaluation

(2) Programmable test sequences for up to 100 positions

(3) Real-time force vs. position monitoring at each test point

(4) Data exportable to Excel for analysis and reporting

(5) Reusable curve data for repeat testing and verification

(6) Robust frame and secure fixture design for consistent test accuracy

(7) User-friendly software interface for test setup, execution, and analysis

Accessories

(1) Drop fixtures for up to 100 lb tests

(2) Load fixtures for up to 1000 lb tests

(3) Data acquisition and software package

(4) Clamping and support fixtures for various liner sizes

(5) Optional safety shields and protective covers

Maintenance Information

(1) Inspect drop and load fixtures regularly for wear or damage

(2) Calibrate force sensors periodically to maintain measurement accuracy

(3) Keep the test frame and fixture surfaces clean and free of debris

(4) Update software periodically to ensure compatibility with new test protocols

(5) Lubricate moving components and check for proper alignment before each test sequence

FAQ

(1) What is the Automotive Bed Liner Strength Tester?

It is a testing system for evaluating the strength and durability of truck bed liners under drop and load conditions.

(2) What is it used for?

It measures impact resistance, load-bearing capacity, and structural integrity of truck bed liners.

(3) What is the working principle?

The tester drops or applies loads to secured liners while recording position vs. force data for each test point.

(4) Why is it important?

It ensures bed liners can withstand real-world impact and load, maintaining vehicle safety and performance.

(5) What industries is it suitable for?

Automotive manufacturing, R&D, quality control laboratories, and material certification facilities.
