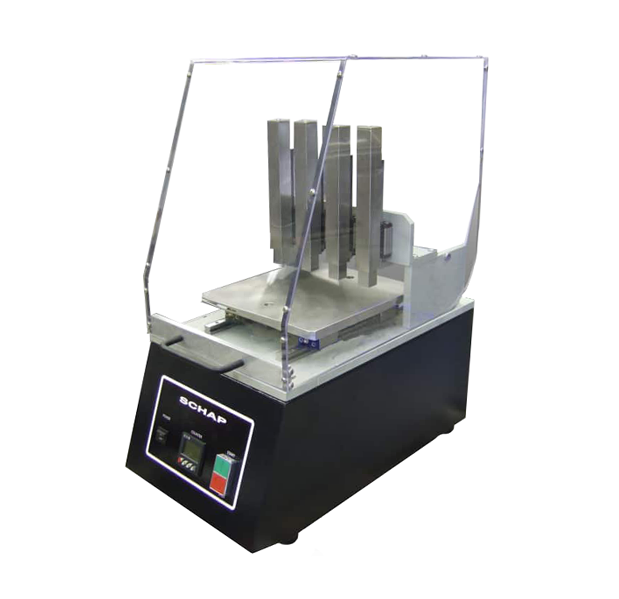

The Nissan Material Abrasion Tester is a four-station precision rubbing instrument designed to evaluate the abrasion resistance of a wide range of materials, such as textiles, coatings, plastics, and interior automotive components.
It measures how well materials withstand wear due to repeated rubbing or frictional contact, providing essential data for automotive material qualification and durability testing.
Nissan NES M0155 (2008-N) – Sections 15, 16, and 31
Nissan NES MO602 (2022-3)
These standards define the procedures for evaluating surface wear, abrasion durability, and coating adhesion performance of automotive materials.
| Feature | Specification |
|---|---|
| Number of Test Stations | 4 independent test stations |
| Cycle Speed Range | 0 – 60 cycles per minute (CPM), adjustable |
| Stroke Length Range | 50 – 100 mm, adjustable |
| Load Range | 12.9 N – 392 N (adjustable via auxiliary weights) |
| Drive Mechanism | Precision ball and needle bearing assembly |
| Motor Type | High-quality brushless electric motors |
| Control System | Programmable count-up controller with automatic stop |
| Speed Controls | Adjustable jog and test speed settings |
| Protective Cover | Vented safety cover to prevent hand contact with moving parts |
| Construction Materials | Non-corrosive aluminum and solid stainless steel |
| Surface Finish | Durable powder coating and anodized finishes |
| Power Supply | Supply voltage specified at time of purchase |
Compliant with official Nissan testing standards, ensuring full compatibility for OEM supplier testing.
Four-station configuration allows multiple samples to be tested simultaneously, improving efficiency.
Wide adjustable stroke and load range accommodates various material types and test severities.
Precision bearings and brushless motors deliver smooth, stable operation and long service life.
Programmable automatic control system simplifies operation and ensures test repeatability.
Vented protective housing enhances operator safety while maintaining accessibility for adjustments.
Corrosion-resistant aluminum and stainless-steel structure guarantees durability in laboratory environments.
Compact, low-noise design suitable for continuous testing applications.
