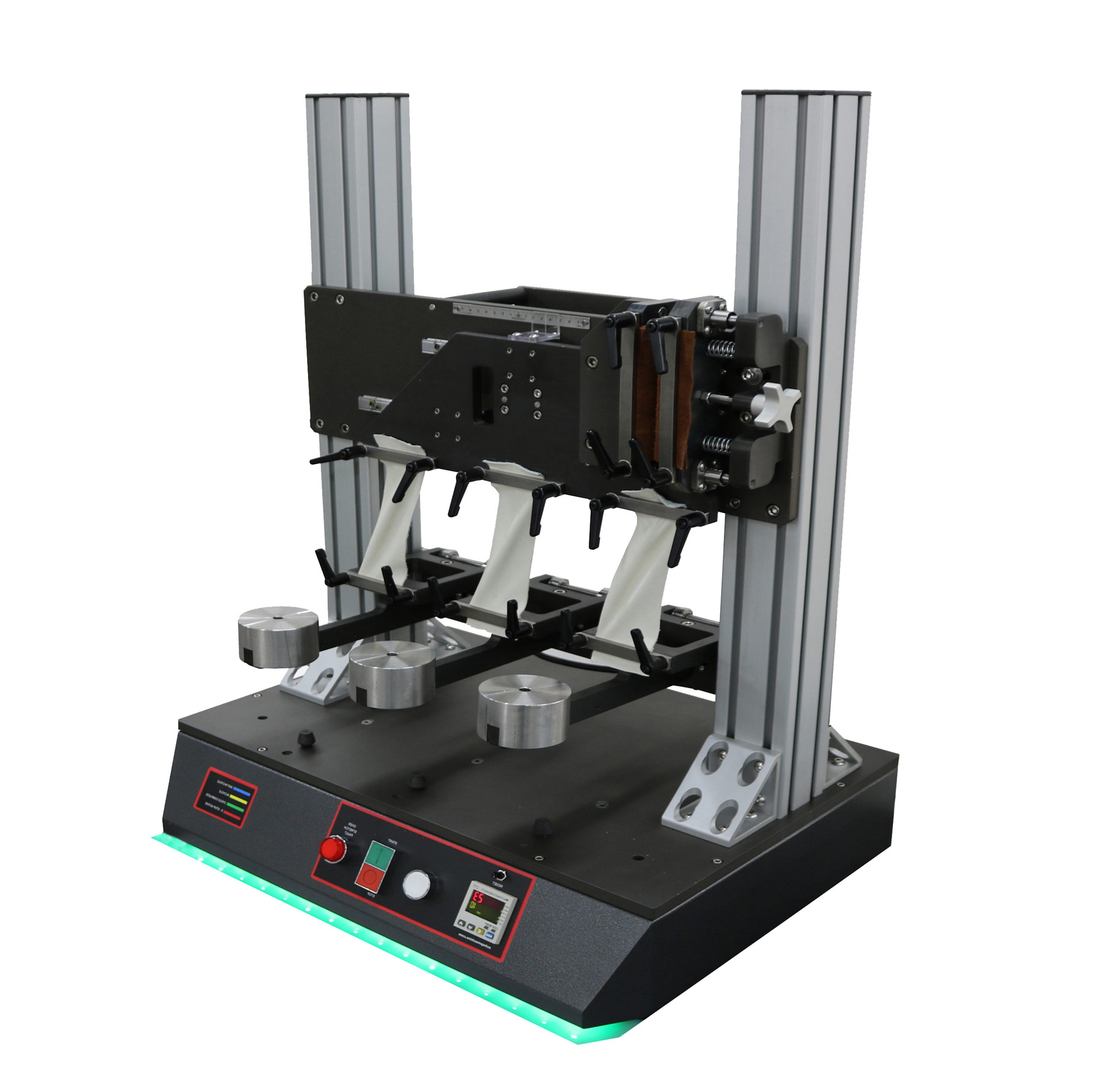

3-Station Flex and Fold Tester

1. Function and Application

The 3-Station Flex and Fold Tester is designed to determine the structural durability and breakdown resistance of materials such as synthetics, leather, vinyl-coated fabrics, and other flexible samples.

Specimens are held under uniform tension and subjected to repeated flexing or folding over a defined distance. This simulates real-world motion and stress that materials experience during normal use. The tester is versatile and can be configured to comply with Fiat Chrysler Automobiles (FCA) or General Motors (GM) test specifications.

2. Applicable Test Standards

LP-463-10-01

LP-463LB-9-01

LP-463LB13-01

3. Technical Specifications

4. Features and Advantages

Multi-Station Testing: Three samples can be tested simultaneously for higher throughput.

Adjustable Tension and Stroke: Allows precise simulation of real-world stress conditions.

Automatic Cycle Stop: Prevents damage to broken samples and ensures repeatable results.

Versatile Compliance: Configurable to FCA and GM flex/fold testing standards.

Durable Construction: Aluminum and stainless steel with anodized finishes ensure long life.

User-Friendly Controls: Digital display, LED status indicators, and adjustable speed make operation intuitive.

Optional Safety Enclosure: Protects operators during high-speed or extended tests.
