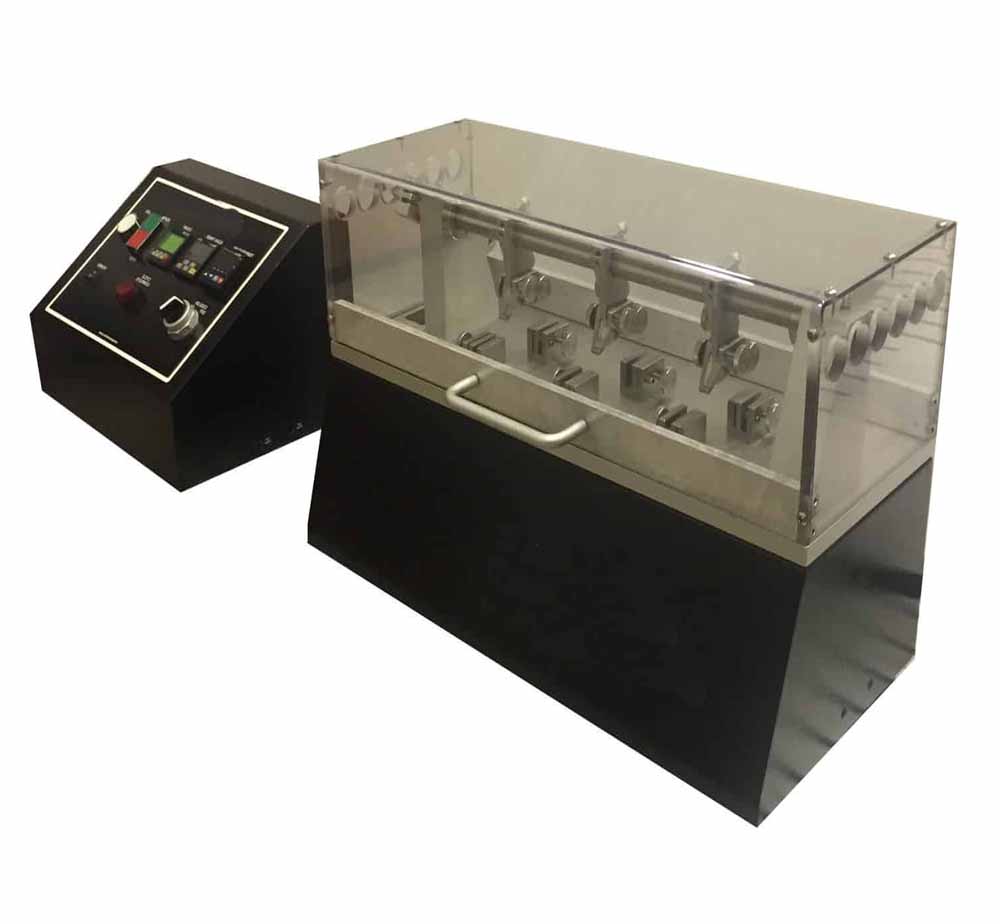

6 Station Cold Capable Bally Flex Tester

1. Function and Application

The 6 Station Cold Capable Bally Flex Tester evaluates the flexural fatigue resistance of leather, composites, vinyl, surface finishes, and other materials at temperatures below ambient. Specimens are folded and clamped between fixed lower clamps and oscillating upper clamps. Each cycle flexes a crease in the specimen to simulate real-world material folding, such as the creases that form in shoe uppers during walking.

This tester is specifically designed for use inside environmental chambers, enabling evaluation at temperatures down to -30°C while the control panel remains external for easy operation.

2. Applicable Test Standards

ASTM D6182

BS 3144: Method 13

DIN 53351

EN ISO 5402

IUP 20, SLP 14

TSL 5101G Sec. 3.14.1

3. Technical Specifications

4. Features and Advantages

Cold Temperature Capability: Operates reliably in environmental chambers down to -30°C.

External Control Panel: Allows the tester to be placed inside cold chambers while controls remain outside.

Programmable Count-Up Controller: Ensures accurate cycle counting and repeatable results.

Compact Design: Minimal chamber footprint of only 22″ (559 mm) length.

Durable Construction: Aluminum and stainless steel components resist corrosion; powder coat and anodized finishes improve longevity.

Precision Bearings: Smooth and accurate flexing without mechanical interference.

Adjustable Parameters: Jog speed and test speed can be tailored to different test specifications.

User-Friendly Operation: Soak timer, temperature display, and cycle counter simplify setup and monitoring.
