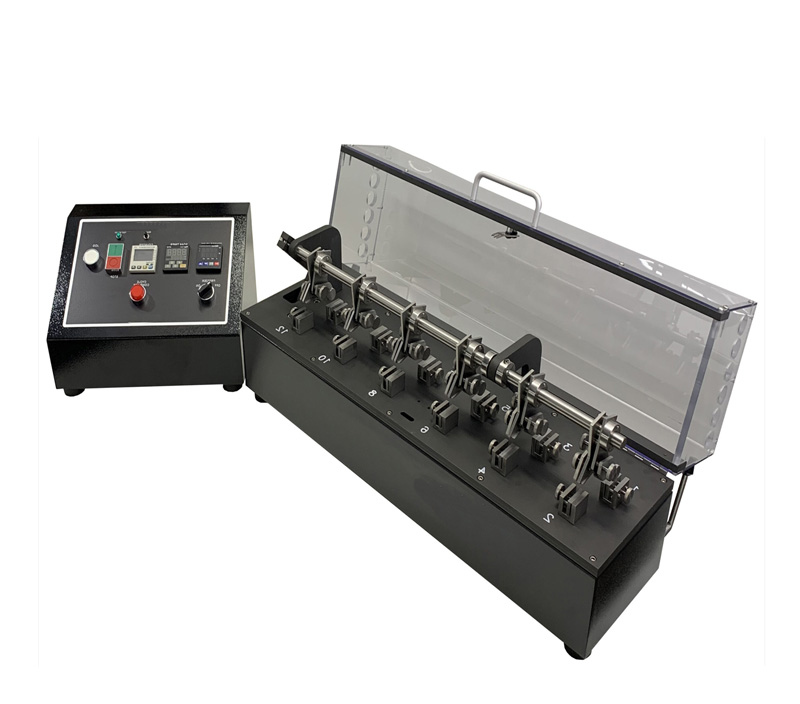

12 Station Cold Capable Bally Flex Tester

1. Function and Application

The 12-Station Cold Capable Bally Flex Tester is designed to evaluate the flexural fatigue resistance of leather, composites, vinyl, surface finishes, and other materials under both ambient and sub-zero conditions.

Up to 12 specimens are folded and clamped between fixed lower clamps and oscillating upper clamps. Each cycle flexes a crease in the specimen, simulating the natural folding and bending a shoe upper or similar material undergoes during use, to assess its propensity to crack.

The integrated freezer system allows testing at temperatures down to -30°C, making this instrument suitable for cold-capable flex testing applications.

2. Applicable Standards

ASTM D6182

BS 3144: Method 13

DIN 53351

EN ISO 5402

TSL 5101G Sec. 3.14.1

3. Technical Specifications

4. Features and Advantages

High Throughput: 12 stations allow simultaneous testing of multiple samples.

Cold Capable: Freezer and scissor lift enable testing down to -30°C.

Automated Operation: Soak timer and programmable count-up controller ensure consistent and repeatable results.

User-Friendly: External push button pendant for lift control; simple selector switch for ambient operation.

Durable Construction: Aluminum and stainless steel design ensures long-term reliability.

Safety: Vented protective cover protects operator hands from pinch points; all moving parts are well shielded.
