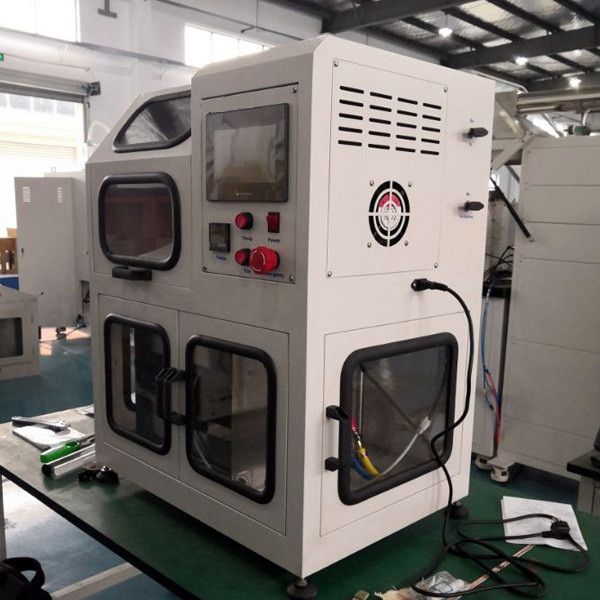

Molten Metal Splash Impact Tester

Projections of molten metal drops at a point on a vertical oriented test specimen and measurement of the number of the drops required to cause a 40 K temperature rise in a sensor behind the specimen.

Application

You can use this tester to determine the impact resistance and protective capability of materials exposed to molten metal splashes. Typical applications include:

(1) Testing protective clothing, gloves, and aprons used in foundries or metal processing industries.

(2) Evaluating thermal insulation panels or shields used in steel mills or metal casting facilities.

(3) Quality control and R&D for high-temperature resistant coatings and fabrics.

(4) Safety certification testing for compliance with international molten metal protection standards.

(5) Material performance comparison for industrial safety evaluations.

Standard：

AQ 6103

ISO 9150:1988

CSN EN 348:1992

GB 8965.2:2009

GB/T 17599:1998

Features：

Drop guide to collect the drops and to guide them towards the vertically oriented test specimen.

Senor for measuring the temperature linked to a recording device.

Holding frame and counterweights for the test specimen.

Motor speed can be adjust so that the steel rod is fed at the rate of (10 f 1) g/mm.

Needle valves adjust the O2 and acetylene flow rate.

LCD Screen display and control the motor speed.

Technical Parameters：

 Test Procedures

(1) Secure the vertically oriented test specimen in the holding frame.

(2) Adjust the motor feed rate according to material thickness and standard requirements.

(3) Set the oxygen and acetylene flow rates using the needle valves.

(4) Start the test and allow molten metal droplets to impact the specimen.

(5) Monitor the temperature rise behind the specimen until a 40 K increase is reached; record the number of droplets required.

(6) Compile results for material evaluation and certification purposes.

Maintenance Information

Clean the drop guide and sensor surfaces after each test.

Inspect gas connections and needle valves for leaks or wear.

Verify motor feed rate calibration periodically.

Store in a dry environment to prevent corrosion.

Replace any worn or damaged parts immediately to ensure accuracy and safety.

Conclusion

The Molten Metal Splash Impact Tester provides accurate, standardized measurement of material resistance to molten metal splashes. Its adjustable motor feed, precise temperature sensor, and compliance with international standards make it ideal for R&D, quality control, and safety certification in metal processing and high-temperature industries.

FAQ

(1) What is this product?

It is a tester that measures the resistance of materials to molten metal splashes.

(2) What is this product used for?

It evaluates protective performance for materials used in high-temperature environments, such as foundries and metalworking industries.

(3) How does this product work?

Molten metal droplets are projected onto a vertical specimen, and the sensor behind it measures the number of drops needed to raise the temperature by 40 K.

(4) Why is this product important?

It ensures that protective materials meet safety and performance requirements, reducing risk to personnel.

(5) Which industries is this product suitable for?

Foundries, metal processing, protective clothing manufacturers, industrial safety labs, and R&D facilities.
