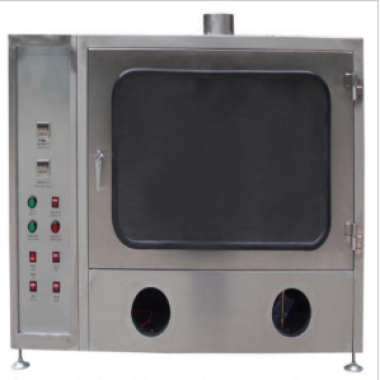

Automotive Wires Flammability Tester

Compliance Standards

• FMVSS 302 (Federal Motor Vehicle Safety Standard)
• ISO 6722 (Road Vehicle Cable Flammability)
• UL 94 (Tests for Flammability of Plastic Materials)
• LV 214-2 (Mercedes-Benz Flame Retardancy Spec)
• SAE J1128 (Low Voltage Battery Cable)

Technical Parameters

Key Features

• Vertical/horizontal flame chamber
• Automatic flame application/retraction
• Real-time temperature mapping
• Smoke density measurement (0-100% obscuration)
• Self-extinguishing time calculation

Test Capabilities

Measurement System

• High-speed IR thermography (1000Hz)
• Laser smoke particle counter

Flame ionization detector (FID)

• Microsecond-resolution timers

Standard Configuration

• Stainless steel test chamber (500×500×500mm)
• Adjustable specimen holder
• Precision gas flow control (0-10L/min)
• FlameTest Pro analysis software

Automotive Options

• EV battery fire simulation module
• Toxic gas analyzer (HCN, CO, NOx)
• High-voltage arc tracking detector
• 3D flame propagation analysis

Safety Systems

• Automatic gas shutoff valve
• Explosion-proof fume extraction
• Emergency purge system
• Thermal overload protection

Test Protocol Example (FMVSS 302)

1. Precondition sample @23°C/50% RH for 24h
2. Mount specimen horizontally in holder
3. Apply 38mm flame for 15s
4. Measure burn rate between 25-150mm marks

5. Calculate maximum spread rate ≤100mm/min
