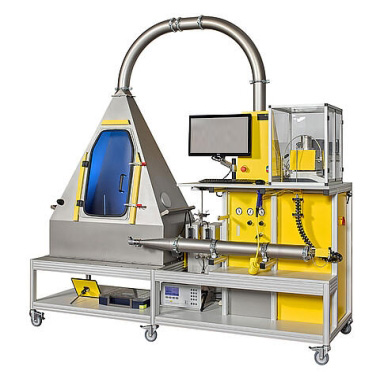

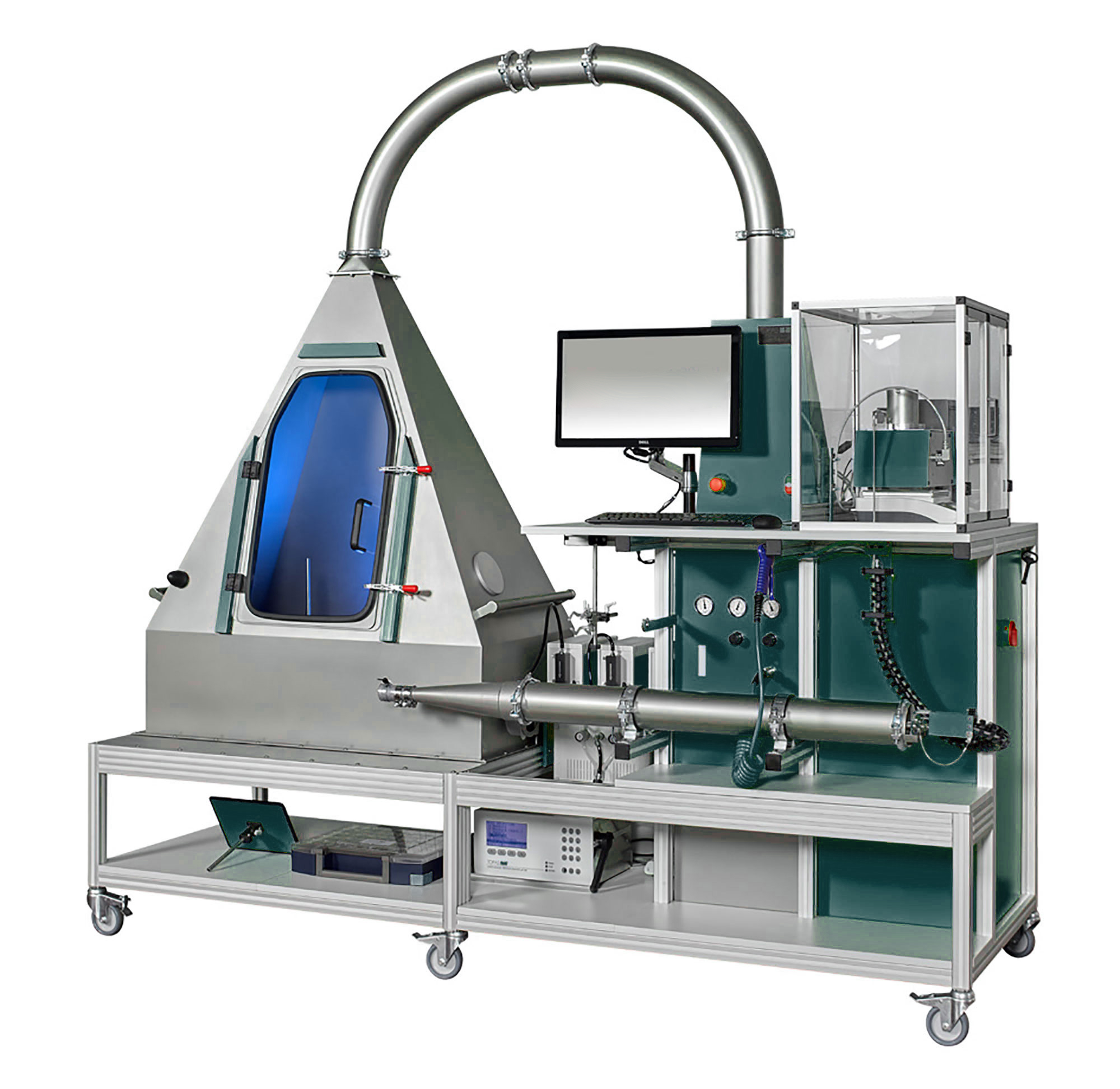

Vacuum Cleaner Filtration Test System

Vacuum Cleaner Filters for emission characterisation of vacuum cleaners (EN 60312)

For emission tests the suction air is prepared with a dust concentration of 550 mg/m³ and passed directly into the hose of the vac.

For dust retaining tests the suction air is prepared with a dust concentration of 100 mg/m³ in the inlet channel (mixing tube) described in the standard.

Applications

Determination of particle emission of the vacuum cleaner into the exhaust air

Determination of the dust retaining capacity of the vacuum cleaner

Standard

The Vacuum Cleaner Filters is designed for tests on vacuum cleaners (vac) for household or small business use according to the standard EN 60312.

GB/T 38043-2019 Commercial Vacuum Cleaner Performance Test Methods

GB/T 4214.2-2020 Noise Measurement for Household Appliances – Vacuum Cleaner Requirements

EN 60312 Vacuum Cleaner Performance Test Standard

Commission Delegated Regulation (EU) No. 665/2013 Energy Label and Dust Re-Emission Requirements

Features

Manual control for service, calibration procedures and user defined tests

Automatic test procedures in accordance with standard EN 60312

Emission test with determination of the average result and determination of a confidence limit

Filtration efficiency test with determination of a confidence limit

Dust-reemission tests according to Commission Delegated Regulation (EU) No. 665 / 2013; known as ‘Energy Label for Vacuum Cleaners’

Technical data

Accessories

control Software VCTWin for Vacuum Cleaner Test Rig VCT 121

Test Procedures

(1) Place the vacuum cleaner in the sealed test hood and ensure airtight connection.

(2) Select the test type: emission test or dust retention test.

(3) Start the dust feeder and set the required dust concentration.

(4) Launch automatic or manual testing program and collect particle concentration and airflow data.

(5) Calibrate sensors (airflow, pressure, environmental conditions) to ensure accuracy.

(6) After the test, export data and generate statistical analysis and test reports.

FAQ

1.What is this product?

This is a vacuum cleaner filtration test system designed to evaluate particle emission, dust retention, and filtration performance of household and small commercial vacuum cleaners.

2.What is this product used for?

It is used for laboratory and production-line testing of vacuum cleaner performance, including particle emission, dust retention, filtration efficiency, and re-emission compliance.

3.Why is this product important?

It ensures vacuum cleaners meet national and international standards, supports product development, quality control, and regulatory compliance (e.g., EU energy label requirements).

4.What industries is this product suitable for?

Household appliance manufacturers, small commercial vacuum cleaner producers, third-party testing laboratories, and R&D facilities.

5.What types of tests can be performed with this system?

Particle emission tests, dust retention tests, filtration efficiency measurement, and re-emission performance evaluation under standardized and controlled conditions.
