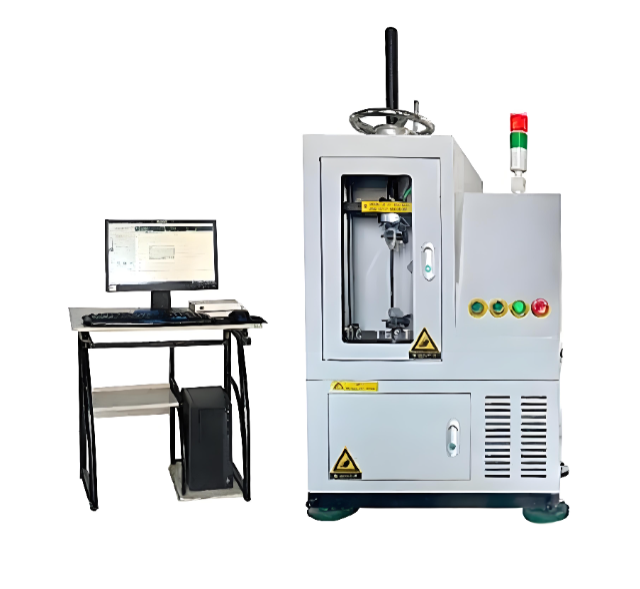

The Mechanical Tensile and Compression Fatigue Testing Machine is a testing device used to evaluate the fatigue life, durability, compression performance, and mechanical properties of various materials and components under repeated tensile and compression loading conditions. It can measure parameters such as compression force, failure load, deformation, compressive strength, and elastic modulus.
GB/T 2611 — General Requirements for Testing Machines
GB/T 3075 — Metal Materials — Fatigue Testing — Axial Force-Controlled Method
GB/T 228.1 — Metallic Materials — Tensile Testing
The Mechanical Tensile and Compression Fatigue Testing Machine is used for compression tests of various materials to obtain data such as compression force, failure load, compressive strength, deformation, elastic modulus, and other mechanical properties, with test results available for printing.
It can be applied to the evaluation of load-bearing components such as beams and elastic elements made from various materials in aerospace, marine engineering, transportation, bridges, buildings, ports, and engineering structures.
By replacing different testing fixtures, it can also perform fatigue life tests on components such as automotive leaf springs, coil springs, shock absorbers, and various parts used in automobiles, motorcycles, and other vehicles.
| Item | Specification |
|---|---|
| Maximum Test Force | 10 N–1000 kN |
| Maximum Specimen Length | 600 mm (Customizable) |
| Maximum Specimen Diameter | 300 mm |
| Test Frequency | 0.5–50 Hz |
| Amplitude | Max. 50 mm |
| Counting Capacity | 999.999.999 cycles |
| Test Station | 1 station (Customizable, not exceeding the maximum test force) |
| Power Supply | 380 VAC, 50 Hz |
| Motor Output | 750 W |
| Protection Function | Dual protection by mechanical and program control |
| Assembly Quality | Complies with national standard GB/T 2611 |
Suitable for tensile, compression, and fatigue life tests of various materials and components.
Wide test force range from 10 N to 1000 kN, meeting different testing requirements.
Adjustable test frequency and amplitude for different fatigue test conditions.
High-capacity cycle counter with automatic stop after preset test cycles.
Supports customized fixtures for testing springs, shock absorbers, automotive components, and structural parts.
Equipped with mechanical and program dual protection systems for safe operation.
Stable structure, reliable performance, and suitable for research, production inspection, and quality control applications.
