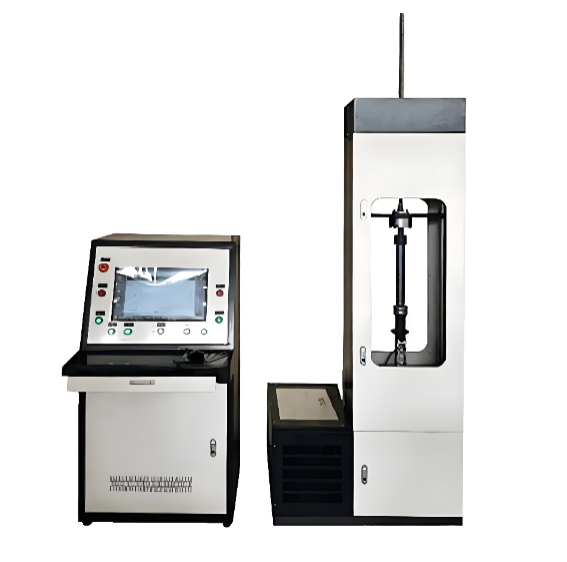

The Valve Spring Fatigue Testing Machine is a specialized testing device used to evaluate the fatigue life, fatigue limit, durability, and performance stability of tension and compression coil springs. It simulates repeated working conditions to analyze the fatigue characteristics of valve springs and other elastic components under different frequencies.
GB/T 2611 — General Requirements for Testing Machines
GB/T 1239.2 — Cold Coiled Helical Compression Springs — Technical Specifications
GB/T 1239.4 — Hot Coiled Helical Compression Springs — Technical Specifications
JB/T 7796 — Fatigue Testing Machines for Springs
The Valve Spring Fatigue Testing Machine is mainly used for fatigue tests and fatigue limit tests of tension and compression coil springs. By changing the vibrating mass, it can perform fatigue life tests of the same type of spring at different frequencies, and obtain the fatigue life curves of springs under different frequencies.
With appropriate modifications of fixtures, it can also be used for fatigue testing of other types of elastic components.
It is suitable for all industries involved in the manufacturing and application of springs.
| Item | Specification |
|---|---|
| Maximum Test Force | 50 N, 100 N, 500 N, 1000 N, 2000 N, 3000 N, 5000 N, 10000 N, 30000 N, etc. |
| Maximum Specimen Length | 400 mm (Customizable according to customer requirements) |
| Maximum Specimen Diameter | Φ300 mm (Customizable according to customer requirements) |
| Test Frequency | 0.3–50 Hz |
| Amplitude | 50 mm (Customizable according to customer requirements) |
| Counting Capacity | 999.999.999 cycles |
| Test Stations | N (Multiple stations) |
| Power Supply | 380 VAC, 50 Hz |
| Power Capacity | 10 kW |
Suitable for fatigue life and fatigue limit tests of valve springs and various coil springs.
Adjustable test frequency and vibration parameters to obtain fatigue life curves under different conditions.
Supports testing of different elastic components by changing fixtures.
High-capacity cycle counter with automatic stop after preset test cycles.
Stable structure, reliable operation, and high testing efficiency.
Widely used in automotive, spring manufacturing, mechanical components, research institutes, and quality inspection industries.
