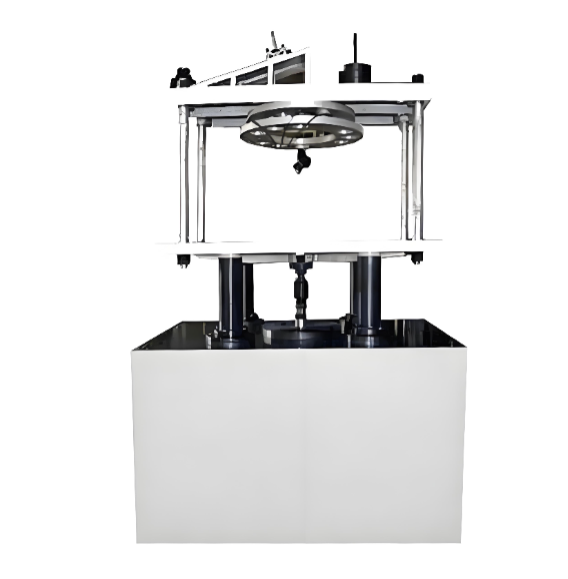

The Light Alloy Wheel Torsional Fatigue Testing Machine is designed for torsional fatigue testing of
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
The Light Alloy Wheel Torsional Fatigue Testing Machine is designed for torsional fatigue testing of light alloy wheels used in motorcycles and mopeds. It is used to evaluate the torsional fatigue strength, durability, and reliability of wheel assemblies under repeated torsional loading conditions. The machine simulates actual service conditions by applying cyclic torque loads to the wheel specimen, helping determine its fatigue performance and service life. It is widely used in wheel manufacturers, motorcycle manufacturers, research institutes, and quality inspection laboratories.
The Light Alloy Wheel Torsional Fatigue Testing Machine is mainly used for torsional fatigue testing of light alloy wheels for motorcycles and mopeds.
The Light Alloy Wheel Torsional Fatigue Testing Machine complies with the following standards:
QC/T 211-1996 — Test Methods for Light Alloy Wheels of Motorcycles and Mopeds
QC/T 212-1996 — General Technical Requirements for Integral Aluminum Alloy Wheels of Motorcycles and Mopeds
JASO T203-85 — Motorcycle Light Alloy Wheels
ISO 8644:1988 — Motorcycles — Light Alloy Wheels — Test Methods
ISO 8645:1988 — Mopeds — Light Alloy Wheels — Test Methods
GB/T 6147-1992 — Packaging, Marking, Transportation and Storage Requirements for Testing Machines
| Parameter | Specification |
|---|---|
| Test Torque | 1400 Nm |
| Maximum Test Force | 2000 N |
| Force Indication Accuracy | ±1% (from 20% FS) |
| Test Force Arm Length | 700 mm ±0.5 mm |
| Test Frequency | ≤5 Hz |
| Test Cycle Display | 10 digits |
| Tested Wheel Diameter Range | 125–600 mm |
| Total Motor Power | 4 kW |
High Torque Fatigue Testing Capability
Provides a maximum test torque of 1400 Nm for evaluating wheel torsional durability.
Simulates repeated torque loads during actual vehicle operation.
High Precision Measurement System
Equipped with a high-accuracy force measurement system.
Force indication accuracy reaches ±1% FS (from 20% FS).
Wide Wheel Compatibility
Suitable for light alloy wheels with diameters ranging from 125 mm to 600 mm.
Supports various motorcycle and moped wheel specifications.
Stable Cyclic Loading System
Maximum test frequency up to 5 Hz.
Suitable for long-term fatigue durability testing.
Digital Cycle Counting Function
Displays test cycles with a 10-digit counter.
Enables accurate monitoring of fatigue test progress.
Compliance with International Standards
Designed according to motorcycle and moped light alloy wheel fatigue testing requirements.
Suitable for manufacturer inspection, product development, and third-party testing.
