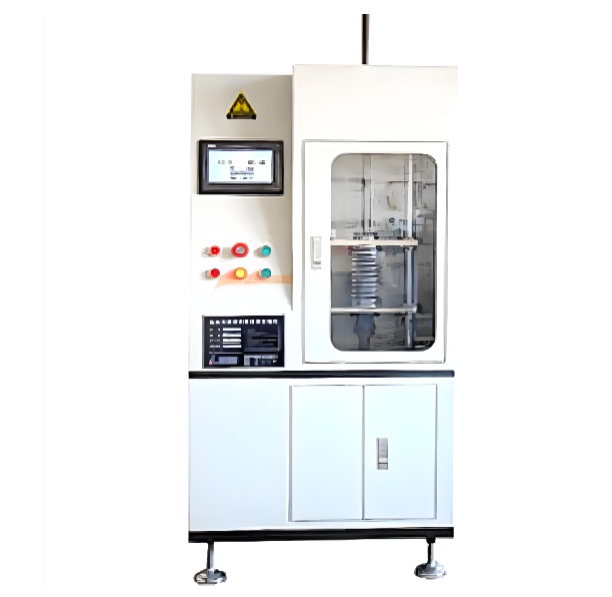

The Spring Fatigue Life Testing Machine is designed to evaluate the fatigue life and durability perf
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
The Spring Fatigue Life Testing Machine is designed to evaluate the fatigue life and durability performance of various elastic components, including tension springs, compression springs, wave springs, disc springs, leaf springs, mold springs, rubber components, sealing parts, and other elastic elements.
The Spring Fatigue Life Testing Machine complies with the following standards:
GB/T 2611 — General Requirements for Testing Machines
JB/T 7796 — Technical Conditions for Spring Testing Machines
GB/T 1239.2 — Cold Coiled Helical Compression Springs — Technical Specifications
GB/T 1239.3 — Cold Coiled Helical Tension Springs — Technical Specifications
GB/T 1973.1 — Small Helical Compression Springs — Technical Requirements
GB/T 1973.2 — Small Helical Tension Springs — Technical Requirements
Relevant customer-specific standards and spring fatigue testing requirements
The Spring Fatigue Life Testing Machine is mainly used to perform fatigue life testing on various elastic components, including tension springs, compression springs, elastomers, wave springs, washers, leaf springs, disc springs, special-shaped springs, mold springs, rubber components, sealing parts, and other elastic elements.
By setting the test amplitude, test speed, and test cycles, the machine can automatically start the fatigue test. The test speed and cycle count are displayed in real time, and the equipment automatically stops when the preset number of test cycles is reached.
The machine features high integration, simple operation, low failure rate, stable and reliable performance. It is widely used in the spring manufacturing industry, rubber industry, industrial enterprises, research institutes, universities, and quality inspection organizations.
The spring test amplitude and frequency can be adjusted according to technical requirements of different springs.
Equipped with an LCD display with Chinese characters. Test cycles and frequency can be programmed according to requirements for automatic operation.
The machine automatically stops when the preset number of test cycles is reached.
The motor and reducer drive the cam mechanism, which moves the connecting rod reciprocally to achieve tensile and compression movements of the spring specimen.
Simple operation with stable and reliable performance.
| Item | Specification |
|---|---|
| Product Name | Spring Fatigue Life Testing Machine |
| Customization | Available |
| Test Force | 100 N / 200 N / 500 N / 1000 N / 2000 N / 5000 N / 10000 N / 20000 N |
| Maximum Specimen Length | Net 700 mm (Customizable) |
| Maximum Specimen Outer Diameter | Φ200 mm (Customizable) |
| Test Frequency | 0.5–50 Hz (Customizable) |
| Amplitude | Max. 50 mm (Customizable) |
| Counter Capacity | 999.999.999 cycles |
| Test Stations | 1 station (Customizable, not exceeding the maximum test force) |
| Power Supply | AC 220 V, 50 Hz |
| Motor Output Power | 750 W |
| Cycle Counting Accuracy | 1 cycle |
| Rated Power Supply | AC 220 V ±10%, 50 Hz |
| Protection Function | Mechanical and program dual protection |
| Assembly Quality | Complies with national standard GB/T 2611 |
