Fabric Drying Rate Tester

The Fabric Drying Rate Tester is a device specifically designed to measure the moisture-absorbing and quick-drying properties of textiles. Its core function is to simulate the drying process of a fabric in a specific environment after the human body has sweated; drying time and rate are calculated based on changes in temperature or weight.

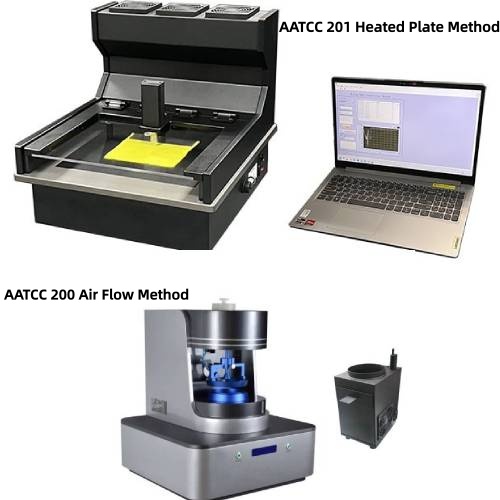

There are two mainstream testing methods:AATCC 200 Air Flow Method、AATCC 201 Heated Plate Method.

Applications

Knitted fabrics: sportswear, outdoor gear,e.g.

Quick-drying fabrics: towels, bedding,e.g.

Standards

AATCC 200 Drying Rate of Textiles at their Absorbent Capacity: Air Flow Method

AATCC 201 Drying Rate of Fabrics: Heated Plate Method

ISO 17617 Textiles - Determination of moisture drying rate

GB/T 43822-2024‌ Textiles-Determination of the drying rate of fabrics at their absorbent capacity

‌FZ/T 01176-2024‌ Textiles—Determination of the drying rate of fabrics—Heated plate method

Features

Air Flow Method:

1. Incorporates high-precision sensors for air velocity, temperature (infrared), and moisture, along with a high-precision airflow control unit and a mechanism that alternates between water-drop sensing and infrared measurement.

2. Integrated with software, the system automates the measurement of maximum fabric water absorption, drying time, and drying rate, as well as subsequent data analysis; this significantly boosts efficiency and measurement accuracy while minimizing errors caused by manual operation.

3. Data is transmitted between the testing software and the main unit via a USB port; results are displayed and saved as curves and charts, facilitating user analysis and printing.

Heated Plate Method:

1. Incorporates high-precision air velocity sensors, infrared temperature sensors, standard temperature sensors, a precision water-drip system, a high-precision airflow control unit, and an airflow channel designed based on fluid dynamics principles.

2. Integrates with computer software to automatically perform fabric drying time and drying rate tests, as well as comprehensive data analysis; this significantly enhances operational efficiency and measurement accuracy while minimizing errors caused by manual operation.

3. The testing software communicates with the main unit via a USB port, displaying and saving data in the form of curves and charts to facilitate user analysis and printing.

Technical Specifications

Air Flow Method:

Operation & Maintenance

(1) Prepare sample according to material type and place in the testing chamber.
(2) Set required test parameters, including temperature, airflow, and humidity.
(3) Start the test and monitor the drying process in real-time.
(4) Record the moisture loss at set intervals or use automated data logging.
(5) After completion, remove samples and clean the chamber.
(6) Inspect sensors and measurement components regularly for accuracy.
(7) Calibrate temperature and humidity sensors periodically.
(8) Ensure ventilation and avoid dust accumulation for consistent results.
(9) Store the instrument in a dry and stable environment when not in use.
(10) Follow manufacturer guidance for software updates and technical support.
