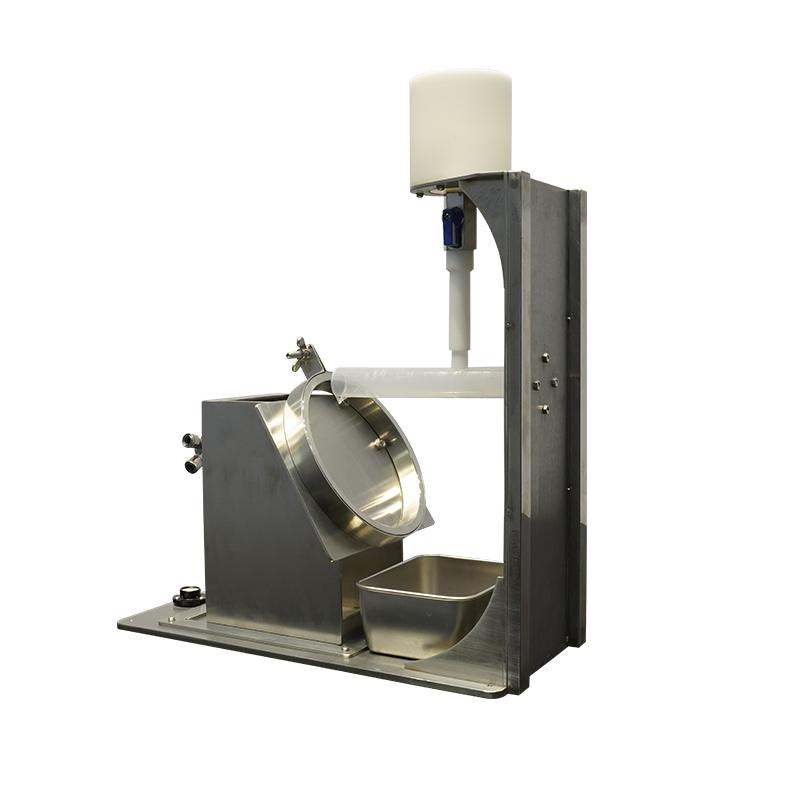

Fabric Water Absorption Tester

Fabric Water Absorption Tester is designed to test the ability of terry fabric to rapidly absorb and retain liquid water from surfaces such as human skin, dishes, and furniture in accordance with ASTM D 4772.

A measured amount of water is poured into the funnel and onto the fabric that has been secured to the fixture.  The water captured in the lower pan is subtracted from the original amount to determine the amount of water that was absorbed.

Standards：

GB/T 22799. ASTM D 4772

Scope of application:

Fabric, Leather & Vinyl Testers

Feature：

1. The mounting seat is made of 304# stainless steel, rustproof and durable.

2. The specimen holder can be adjusted left and right to meet the standard requirements.

3. Sample installation is simple and convenient.

Parameter：

Model：Q121

Flow tube：50ml

Funnel：150ml

Specimen placement angle：60° to the horizontal

Distance between the outlet end of the water pipe and the surface of the specimen：2mm~ 10mm; from the inside of the outer ring of the card ring: 28mm~32mm

Specimen holder diameter： Standard φ150mm (GB/T standard)  optional φ153mm (ASTM standard)

External dimensions：380*180*480mm

Weight：7.4kg
