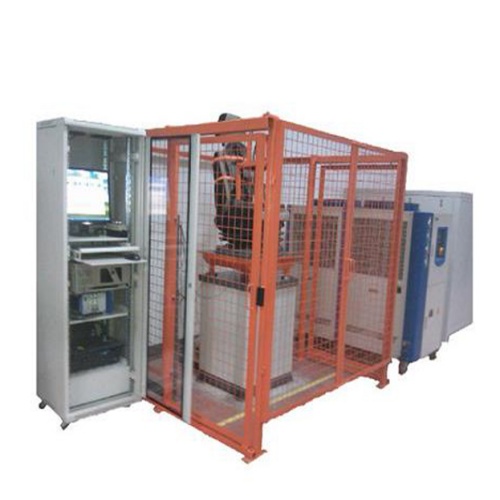

Automotive Seat Dynamic Comfort Tester

The Automotive Seat Dynamic Comfort Tester is designed to evaluate seat performance under dynamic conditions. It measures key parameters such as dynamic stiffness, natural frequency, damping ratio, and vibration transmissibility curves. These metrics help engineers and designers assess how a seat responds to vibrations and dynamic loads, providing essential insights into occupant comfort and seat performance under real-world driving conditions.

Application

(1) Automotive seat design and development
(2) Evaluation of seat dynamic comfort performance
(3) Quality control in automotive seat manufacturing
(4) Research on vibration behavior of seating systems
(5) Performance verification under simulated driving conditions

Standards

QC/T 55-1993 – Test methods for dynamic comfort of automotive seats.

Supports parameter tests as specified in Section 6 of QC/T 55-1993.

Features

Simulates vertical and horizontal dynamic loads on automotive seats.

Measures dynamic stiffness, natural frequency, damping ratio, and vibration transmissibility.

Adjustable vertical and horizontal stroke to accommodate various seat designs.

Capable of simulating pitch motion with adjustable angle ranges.

High-precision force and displacement control ensures accurate and reliable results.

Applicable for R&D, comfort evaluation, quality control, and certification testing.

Technical Parameters

Optional Accessories

Additional mounting adapters for different seat types.

High-precision force and displacement sensors for enhanced measurement accuracy.

Data acquisition and analysis software for real-time monitoring and reporting.

Environmental simulation accessories for testing under temperature or humidity variations.

Protective enclosures and safety devices for operator protection.

Method & Maintenance

Operation Method

Secure the automotive seat on the test platform using appropriate fixtures.

Set the test parameters including load ranges, stroke, pitch angle, and vibration frequency.

Start the system to apply dynamic loads while recording force, displacement, and vibration data in real time.

Analyze the results to assess seat comfort, stiffness, damping, and vibration transmissibility.

Maintenance

Inspect mechanical components and mounting fixtures regularly for wear or damage.

Calibrate force and displacement sensors periodically to maintain accuracy.

Ensure control system and data acquisition devices are free from dust and moisture.

Check safety features, including emergency stop and protective enclosures, before each test.

Lubricate moving parts according to the manufacturer’s maintenance schedule to ensure smooth operation.

Conclusion

The Automotive Seat Dynamic Comfort Tester provides a reliable solution for evaluating seat performance under dynamic conditions. It supports accurate analysis of vibration characteristics and contributes to improved comfort and product quality in automotive seating systems.

FAQ

(1) What is the Automotive Seat Dynamic Comfort Tester?

The Automotive Seat Dynamic Comfort Tester is a laboratory instrument used to evaluate the dynamic comfort characteristics of automotive seats.

(2) What is the Automotive Seat Dynamic Comfort Tester used for?

It is used to measure parameters such as stiffness, natural frequency, damping ratio, and vibration transmissibility to assess seat comfort.

(3) What is the working principle of the Automotive Seat Dynamic Comfort Tester?

The system applies controlled loads and vibrations to a seat and measures its dynamic response under simulated operating conditions.

(4) Why is the Automotive Seat Dynamic Comfort Tester important?

It helps ensure that automotive seats provide adequate comfort and vibration isolation for passengers.

(5) What industries is the Automotive Seat Dynamic Comfort Tester suitable for?

It is suitable for automotive manufacturers, seat suppliers, research institutions, and testing laboratories.
