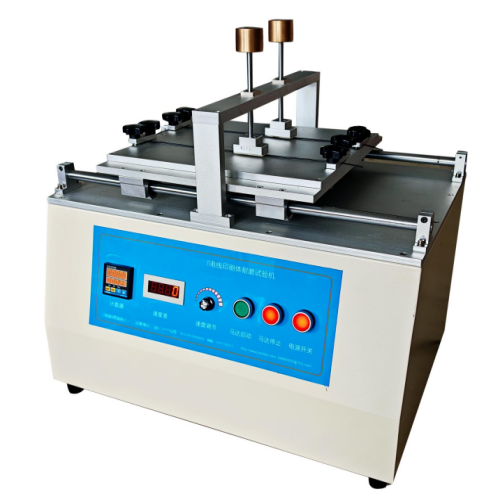

The Automotive Wire Marking Durability Tester is designed to evaluate the durability and adhesion of printed markings on automotive wires and plastic surfaces. By applying controlled friction with wool felt hammers on fixed wire samples, it assesses the resistance of printed characters or labels to wear, ensuring reliable identification throughout a wire’s service life.
(1) Assess durability of printed markings on automotive wires.
(2) Test adhesion and wear resistance of printed characters on plastic surfaces.
(3) Provide data to verify compliance with ISO marking standards for automotive wiring.
(4) Applicable in automotive OEMs, wire manufacturers, and quality assurance laboratories.
ISO 19642 – Standard for evaluation of printed marking durability on wires and cables.
| Parameter | Specification |
|---|---|
| Friction Speed | 10–40 C.P.M, adjustable |
| Friction Stroke | 250 mm |
| Load | 10 ±1 N (ISO 19642) |
| Wool Felt Dimensions | 50 × 50 × 3 mm, 75% wool, 25% fiber |
| Test Stations | 3, simultaneous testing of three samples |
| Spare Wool Felts | 15 pieces (50 × 50 × 3 mm, 75% wool, 25% fiber) |
| Counter | 6-digit, up to 999,999 |
| Motor Power | 40 W |
| Power Supply | 220 V / 50 Hz |
(1) Multi-sample testing – Three samples can be tested simultaneously for efficiency.
(2) Adjustable friction – Speed and stroke can be modified to simulate different wear conditions.
(3) Standard-compliant – Meets ISO 19642 marking durability requirements.
(4) Easy maintenance – Wool felt pads are replaceable.
(5) Digital counter – Tracks the number of friction cycles accurately.
(6) Lightweight and compact – Simple installation and operation.
(1) 15 replacement wool felt pads (50 × 50 × 3 mm).
(2) Spare screws and adjustment tools.
(3) User manual with operation and maintenance instructions.
(1) Replace worn wool felt hammers regularly to ensure uniform friction.
(2) Clean the machine surface to prevent contamination affecting results.
(3) Lubricate moving parts periodically for smooth operation.
(4) Calibrate load and friction stroke periodically to maintain accuracy.
(5) Inspect the motor and electrical connections for safe operation.
The Automotive Wire Marking Durability Tester provides a reliable, ISO-compliant method to evaluate printed marking wear resistance. It ensures traceability and identification integrity of automotive wires over long-term use, supporting quality assurance and R&D efforts in automotive wiring manufacturing.
1.What is this product?
A tester for evaluating the durability of printed markings on automotive wires and plastic surfaces.
2.What is this product used for?
To assess the wear resistance of printed characters under controlled friction conditions.
3.What is the working principle of this product?
A wool felt hammer applies a controlled load and reciprocating motion over the printed surface to simulate wear.
4.Why is this product important?
Ensures markings remain legible and durable, maintaining traceability and compliance in automotive wiring.
5.What industries is this product suitable for?
Automotive OEMs, wire and cable manufacturers, plastic component producers, and QA laboratories.
