Detailed Product DescriptionTest Positions:12(ISO) Or 6(AATCC)Water Spray:Specimen SurfaceWater
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| Test Positions: | 12(ISO) Or 6(AATCC) | Water Spray: | Specimen Surface |
|---|---|---|---|
| Water Reservoir Capacity: | 15 Liters | Packaging Dimensions: | (W*D*H)1200*770*1880mm |
| Power Supply Source: | 220V,50HZ | Net Weight: | 230kg |

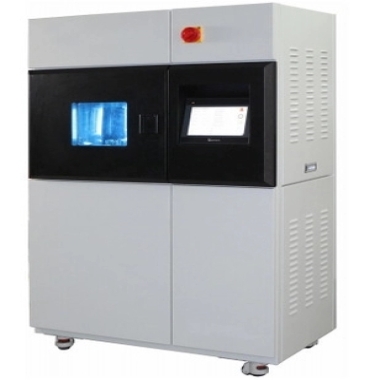

Highlight: | SL-F29 Light Fastness Tester Air Cooling Light Fastness Tester | ||
Used to measure the growth of low-elastic knitted fabrics,fabric elongation and fabric recovery properties(constantload performance
and constant elongation performance).
ISO 105-B02 Textiles -Tests for color fastness-Part B02: Color fastness to artificial light: Xenon arc fading lamp test
ISO 105-B04 Textiles -Testsfor color fastness- Part B04: Color fastnessto artificial weathering: Xenon arc fading lamp test
SO 105-B07 Textiles-Tests for color fastness-Part B07: Color fastness to light of textiles wetted with artificial perspiration
AATCC TM 16 – Option 3 Colorfastness to Light: Xenon-Arc M&S C9 Colorfastness to Light
M&S C9A Colorfastness to wet light in the presence of alkaline or other chemical
| Light Source | 2500w air-cooled xenon arc lamp(recommend replacing lamps every 1500 hours) |
| Test types | Light only,dark only,spray only |
| Total Exposure Area | 1370cm² |
| Test Positions | 12(ISO)or6(AATCC) |
| Exposure Area of each test position | ISO 65.25cm²(145*45)mm AATCC 108.75cm²(145*75)mm |
| Irradiance Monitoring System | Radiometer |
| Irradiance 420nm Range | 0.80~2.01W/m² |
| Rack rotating speed | 5r/min |
| Test chamber humidity range | Light Cycle 10%~70%RH,Dark Cycle 30%~95%RH |
| Test chamber temperature range | 25℃~50℃ |
| Black standard temperature range | 40℃~85℃±1℃ |
| Black panel temperature range(optional) | 40℃~85℃±2℃ |
| Water spray | Specimen surface |
| Water Reservoir Capacity | 15 liters |
| Water Consumpition(ISO 105-BO2 Normal) | 0.9l/h(max.) |
| Color Touch Screen | Supplied as standard |
| Chamber Viewing Window | Supplied as standard |
| Packaging Dimensions | (W*D*H)1200*770*1880mm |
| Power supply source | single-phase,220V±10%,50/60Hz(can be appointed) |
| Net weight | 230kg |
