Features and Benefits1. Various natural environmental conditions such as high temperature, low
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
1. Various natural environmental conditions such as high temperature, low temperature, humidity, light, salt spray, rainfall, etc.can be simulated, to provide a reliable environment for the performance test of solar panels.
2. Precise temperature and humidity control, equipped with high precision temperature probe, temperature deviation is controlled at ±2℃, humidity deviation is controlled at ±2.5%RH.
3. Multiple solar panels are accommodated for testing meantime, and environmental parameters can be automatically controlled and adjusted, real-time monitoring of panels and record data, which greatly improves the test efficiency.
4. With multiple safety protection devices, such as over-temperature protection, leakage protection, etc., can effectively prevent safety accidents to ensure the safety of the test process.

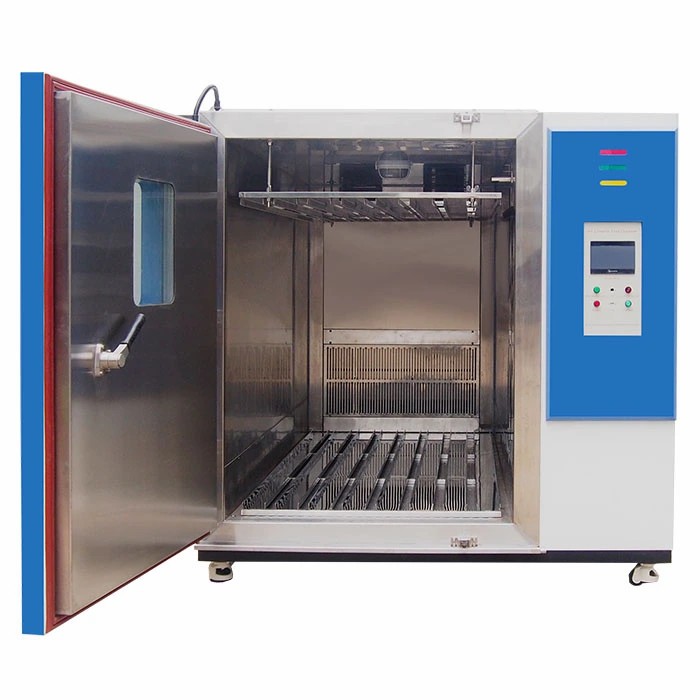

Model | STD PV-04 | ||
Internal Dimension (mm) | 1300*700*1350 | ||
Overall Dimension (mm) | 1900*1100*1750 | ||
Interior Volume | 1220L | ||
Parameter | Temperature Range | -60℃ ～ +100 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | ||
Temperature Deviation | ± 2.0 ℃ | ||
Humidity Range | 20% ~ 98% RH | ||
Humidity Deviation | ± 2.5% RH | ||
Temperature Change Rate | 1 ~ 3.4℃ / Min | ||
Panel Size | 1M*2M | ||
Panel Capacity | 4 / 6 / 8 / 10 / 12 Pieces | ||
Controller | Programmable color LCD touch screen controller | ||
Ethernet connection, PC Link, USB | |||
Humidity | Water supply system | Automatic water supply | |
Water supply system | Water purification system | ||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||
Dehumidification | Evaporator | ||
Sensor | Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃ | |
Humidity Sensor | Dry and wet bulb sensor | ||
Build-in Water Tank(mm) | 270*300*450 | ||
View Window Size(mm) | 330*370 | ||
Air Circulation | Centrifugal wind fan | ||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure Protection; Water Shortage Protection; Earth leakage Protection | ||
