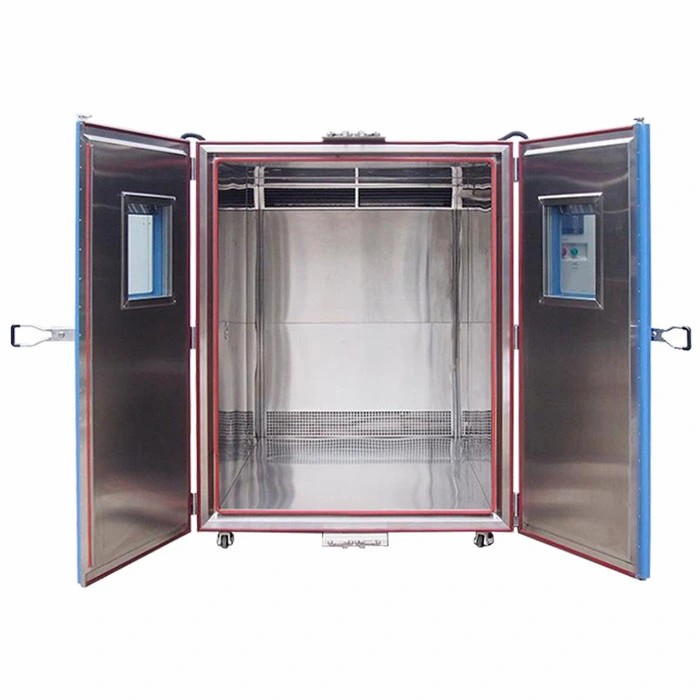

Walk In Humidity Chamber

Features and Benefits1. Easily accommodate large products, parts, components or finished produc

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Features and Benefits

1. Easily accommodate large products, parts, components or finished products for testing, such as large mechanical equipment, aerospace parts, automotive vehicles or large electronic equipment, providing an ideal test environment.

2. The spacious internal space allows multiple samples to be tested at the same time, which greatly improves the test efficiency, especially for the quality detection and screening of batch products by production enterprises.

3. Equipped with advanced temperature and humidity control system and high-precision sensor, it can accurately control the temperature and humidity in the test chamber to ensure the stability and consistency of the test environment.

4. Walk in humidity chamber can be customized according to the specific needs, including internal dimensions, temperature and humidity ranges, control systems, cooling and heating methods, etc.

Specifications

Model

STD TH-100

STD TH-225

STD TH-500

STD TH-1000

Internal Dimension (mm)

400*500*500

500*600*750

700*800*900

1000*1000*1000

Overall Dimension (mm)

900*1050*1620

1000*1140*1870

1200*1340*2020

1500*1540*2140

Interior Volume

100L

225L

500L

1000L

Heat load

1000W

Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min


Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
