Detailed Product DescriptionTemperature Range:-20°C~+150°CHumidity Range:20%~98%R.H.Weight:Appr
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| Temperature Range: | -20°C~+150°C | Humidity Range: | 20%~98%R.H. |
|---|---|---|---|
| Weight: | Approx.170 KGS | Inner Size: | 500*400*550mm |
| Outer Size: | 1020*950*1420 | Power: | 6KW |
| Highlight: | Humidity Test Chamber Temperature Test Chamber | ||

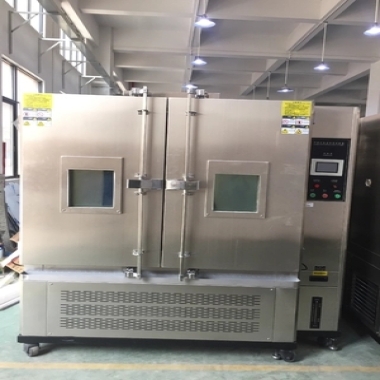

This machine is an independent test equipment for electrician, aviation, automobile, home appliance, paint, scientific research, etc., used to test and determine electrical, electronic and other products and materials.
Power Supply Source: Single-phase, AC220V~AC380V, 50Hz~60Hz, 5KW~14KW;
Imported high-precision microcomputer color touch screen temperature and humidity controller, switch between Chinese and English;
Test hole (left side of the machine) 50mm, can be used for external test power cable or signal cable;
Original European and American imported fully enclosed low noise high and low temperature compressor;
Double-layer high temperature resistant high-strength sealing strip is used between the door and the box to ensure sealing;
The inner and outer boxes are made of imported (SUS#304) stainless steel;
The observation window adopts multi-layer hollow tempered glass and inner glued sheet type conductive film (the test process can be clearly observed);
Safety protection device, when any failure occurs, the fault status is immediately displayed on the screen and the power is cut off to ensure the safety of the machine, the tested product and the use.
>To simulate test environment with different temperature and humidity;
>Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test;
>Moistening test and drying test…
>Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation;
>Uncover test unit weakness in a short-term test with accelerated time effect.
| Inner Size W*H*D (mm) | 1500*1000*1000 |
| External size L*W*H (mm) | 2590*1650*1900 |
| Temperature range | -20°C~+150°C |
| Humidity range | 20%~98%R.H. |
| Weight | 170 KGS |
| Power | 6 KW |
| Voltage | 220 V |
| Temp humidity analytic accuracy/uniformity | ±0.1°C; ±0.1%R.H./±1.0°C; ±3.0% R.H.is special optional condition. |
| Temperature humidity control accuracy/fluctuation | ±1.0°C; ±2.0% R.H./±0.5°C; ±2.0% R.H. |
| Heat/cooling time | About 5.2°C/min; about 1.2°C/min (5~10°C/min is a special optional condition) |
| Inner and outer materials | SUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer. |
| Insulation materials | Resistant to high temp, high density, format chlorine, ethyl acetum foam insulation materials |
| Cooling system | Air cooling/single segment compressor(-20°C), air and water double segment compressor (-40°C~-70°C) |
| Protection devices | Fuse switch, compressor overload switch, refrigerant high- and low-pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system |
| Parts | Watching window, 50mm testing hole, PL internal bulbs, partition plate, dry and wet ball gauze |
| Controller | TEMI” South Korea “TEMI” “OYO” Japan's “OYO” Brand optional |
| Compressor | Original France “Tecumseh” brand |
