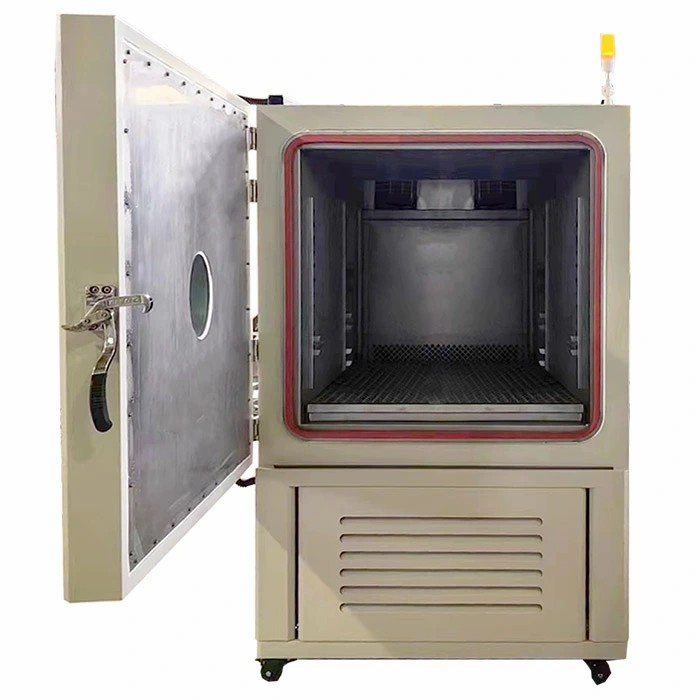

1. The altitude chamber is a comprehensive environmental stress test chamber that combines temperature, humidity, and low air pressure.
2. The altitude simulation chamber can achieve atmospheric pressure ~ 0.5kPa pressure test conditions in the high altitude test chamber.
3. From obtaining customer needs, to discussing solutions, production, transportation, installation and commissioning, LIB can realize one-stop solutions.
4. LIB team responds quickly, has high work efficiency and can delivery the chamber as soon as possible.
Model | STD A-1000 |
Internal dimensions | D 1500 W 1000 H 970 mm |
External dimensions | D 2050 W 1300 H 2200 mm |
Temperature range | —40℃ to +150℃ |
Humidity range | 20% ~ 95% (more than 50Kpa can be controlled) |
Temperature fluctuation | ≤ ±0.5℃ |
Temperature deviation | ≤ ±2.0℃ |
Temperature uniformity | ≤ 2.0℃ (under normal pressure and no load) |
Heating rate | 3℃/min |
Cooling speed | 2℃/min |
Pressure range | Atmospheric pressure to 0.5kPa |
Pressure deviation | ± 2Kpa |
Depressurization time | Atmospheric pressure to 0.5k ≤30min |
Pressure enclosure | Manganese steel, surface spray treatment |
Other outer wall materials | Double-sided galvanized steel plate, surface spray treatment |
Inner wall material | SUS304 stainless steel plate |
Vacuum system | Vacuum pump, air pumping regulating valve, inflation regulating valve |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
