Features and Benefits1. A variety of filters are available. For example, daylight filters are u
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
1. A variety of filters are available. For example, daylight filters are used to simulate sunny days, and UV cut-off filters can shield specific ultraviolet bands to meet different test needs.
2. It can meet many international standards such as ISO 105B-06 and ASTM G155-1. and the test results are widely recognized.
3. Precise control of irradiance and blackboard temperature. The irradiance can be controlled at 35~150W/m², and the blackboard temperature range is 35~85℃±2℃.
4. SUS 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion resistance.

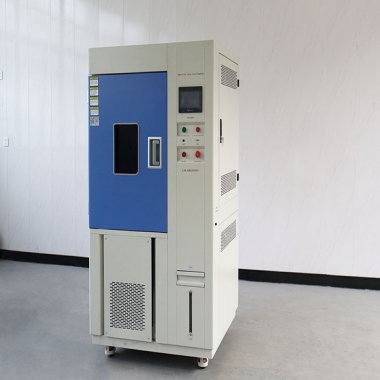

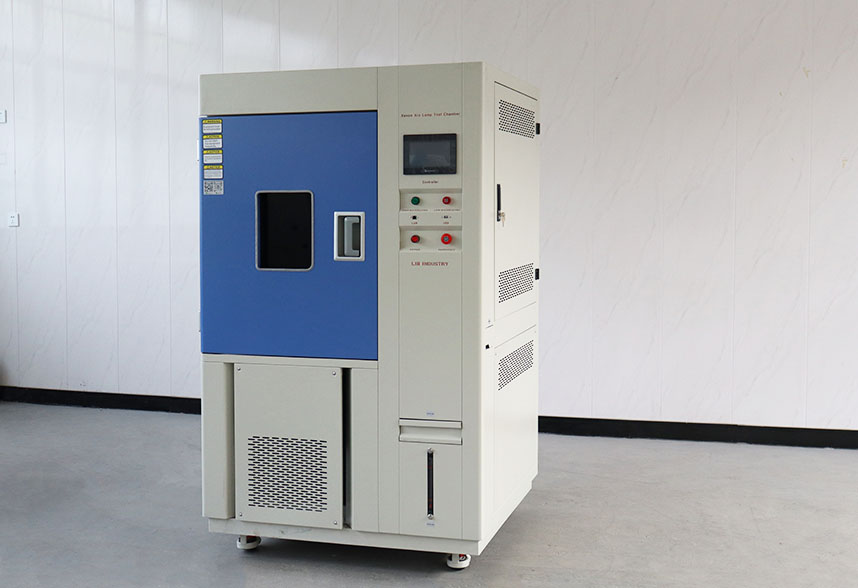

Model | STD XL-S-500 |
Internal Dimension (mm) | 500*600*700 mm |
Overall Dimension (mm) | 1000*1140*1920 mm |
Chamber Type | Flat shelf |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
