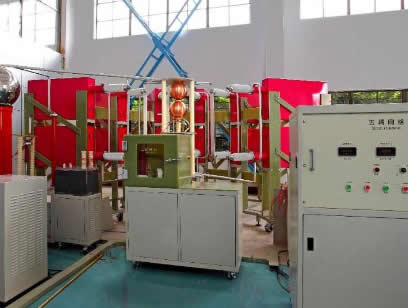

The Lightning Current A/D Component Test System is a high-energy test platform designed to simulate specific lightning current waveforms, particularly A and D components. It is used to evaluate the lightning withstand capability and protection performance of materials, components, and systems.
The system delivers precise high-current pulses that replicate real lightning strike conditions and complies with military and aviation standards, making it suitable for demanding testing environments.
(1) Aerospace and aviation equipment testing
(2) Aircraft lightning protection verification
(3) Composite material and structural testing
(4) Military and defense systems
(5) High-voltage and high-energy laboratories
(6) Electrical protection system validation
Complies with the following standards:
MIL-STD-464
ARP 5412
ARP 5416
| Lightning Component | A Component | D Component |
|---|---|---|
| Peak Time | ≤ 50 μs | ≤ 25 μs |
| Duration Time | ≤ 500 μs | ≤ 500 μs |
| Rated Current | 200 kA | 100 kA |
| Action Integral | 2 × 10⁶ A²s | 0.25 × 10⁶ A²s |
| Load | Crowbar, >50 mΩ | Crowbar, >50 mΩ |
(1) Supports lightning current A and D component generation
(2) High peak current output up to 200 kA
(3) Accurate waveform simulation according to standards
(4) Fast rise time for realistic lightning effects
(5) Stable and repeatable high-energy output
(6) Compliant with military and aerospace standards
(7) Robust protection and crowbar load design
(8) Suitable for component, material, and system-level testing
(9) Flexible configuration for different testing requirements
(10) Reliable performance in high-energy environments
The system generates controlled high-current pulses representing different stages of a lightning strike.
A Component simulates the initial high-energy lightning stroke with a fast rise time and large peak current.
D Component represents subsequent high-current pulses with shorter peak times but significant energy impact.
These waveforms are applied to test objects to evaluate their resistance to lightning-induced electrical and thermal stress.
(1) Regular inspection of high-current circuits
(2) Ensure proper grounding and shielding
(3) Periodic calibration of measurement systems
(4) Maintain cooling and insulation systems
(5) Check protection devices and load modules
(6) Operate under controlled laboratory conditions
The Lightning Current A/D Component Test System provides precise and reliable simulation of lightning current waveforms. With its high-energy output and compliance with international standards, it is an essential tool for aerospace, defense, and advanced material testing.
1. What is this product?
It is a test system designed to simulate lightning current A and D components.
2. What is this product used for?
It is used to evaluate lightning resistance and protection performance of materials and systems.
3. What is the working principle of this product?
It generates high-current pulses that replicate real lightning waveforms.
4. Why is this product important?
It ensures safety and reliability of equipment exposed to lightning conditions.
5. What industries is this product suitable for?
It is suitable for aerospace, defense, and high-energy electrical testing industries.
