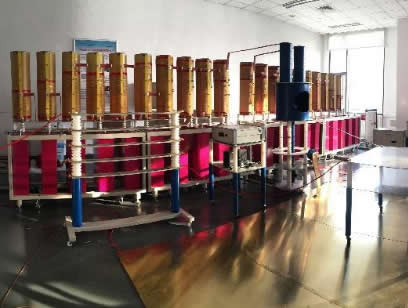

The Continuous Sequence Lightning Current Test System is a high-energy testing platform designed to simulate real lightning strike conditions. It can generate A, B, C, and D lightning current components and perform continuous sequence lightning current tests.
The system is widely used for evaluating lightning effects and protection performance of advanced composite materials, structural components, and complete aircraft systems. It meets IEC and other relevant international standards for lightning testing.
This system is applied in high-end testing fields:
(1) Aerospace and aviation structures
(2) Aircraft lightning protection research
(3) Composite material testing
(4) Structural component validation
(5) Military and defense applications
(6) High-energy electrical testing laboratories
Complies with IEC standards and other relevant lightning test specifications.
MIL STD 464、 APR 5412、APR 5416
| Lightning Component | Peak Time | Duration Time | Rated Current | Charge Transfer | Action Integral | Load |
|---|---|---|---|---|---|---|
| A Component | ≤ 50 μs | ≤ 500 μs | 200 kA | — | 2 × 10⁶ A²s | Crowbar, >50 mΩ |
| B Component | — | 5 ms | 2 kA | 10 C | — | >50 mΩ |
| C Component | ≤ 25 μs | 250 ms – 1 s | 200 – 800 A | 200 C | — | >50 mΩ |
| D Component | — | ≤ 500 μs | 100 kA | — | 0.25 × 10⁶ A²s | Crowbar, >50 mΩ |
(1) Generates full lightning current components (A, B, C, D)
(2) Supports continuous sequence lightning current testing
(3) High peak current capability up to 200 kA
(4) Wide duration range from microseconds to seconds
(5) Accurate simulation of real lightning waveforms
(6) High-energy output with stable performance
(7) Suitable for large-scale structural and material testing
(8) Complies with IEC and international testing standards
(9) Flexible configuration for different test requirements
(10) Reliable load and protection design
The system generates controlled high-current pulses that replicate different stages of a lightning strike. Each component (A, B, C, D) represents a specific phase of lightning discharge, including initial high-current peaks, intermediate currents, and long-duration continuing currents.
By applying these currents in sequence, the system simulates real lightning events, allowing evaluation of material behavior, thermal effects, and structural integrity under extreme electrical stress.
(1) Regular inspection of high-current connections
(2) Ensure proper grounding and shielding
(3) Periodically calibrate measurement systems
(4) Maintain cooling and insulation systems
(5) Check protection circuits and load components
(6) Operate under controlled laboratory conditions
The Continuous Sequence Lightning Current Test System is a critical tool for advanced lightning simulation and protection research. With its ability to generate multiple lightning components and perform continuous sequence testing, it provides reliable and precise evaluation for aerospace and high-performance materials.
1. What is this product?
It is a high-energy test system for simulating lightning current waveforms.
2. What is this product used for?
It is used to test lightning resistance and protection performance of materials and structures.
3. What is the working principle of this product?
It generates controlled lightning current pulses to simulate real lightning strike conditions.
4. Why is this product important?
It ensures safety and reliability of aircraft and materials under lightning conditions.
5. What industries is this product suitable for?
It is suitable for aerospace, defense, research institutions, and high-voltage testing laboratories.
